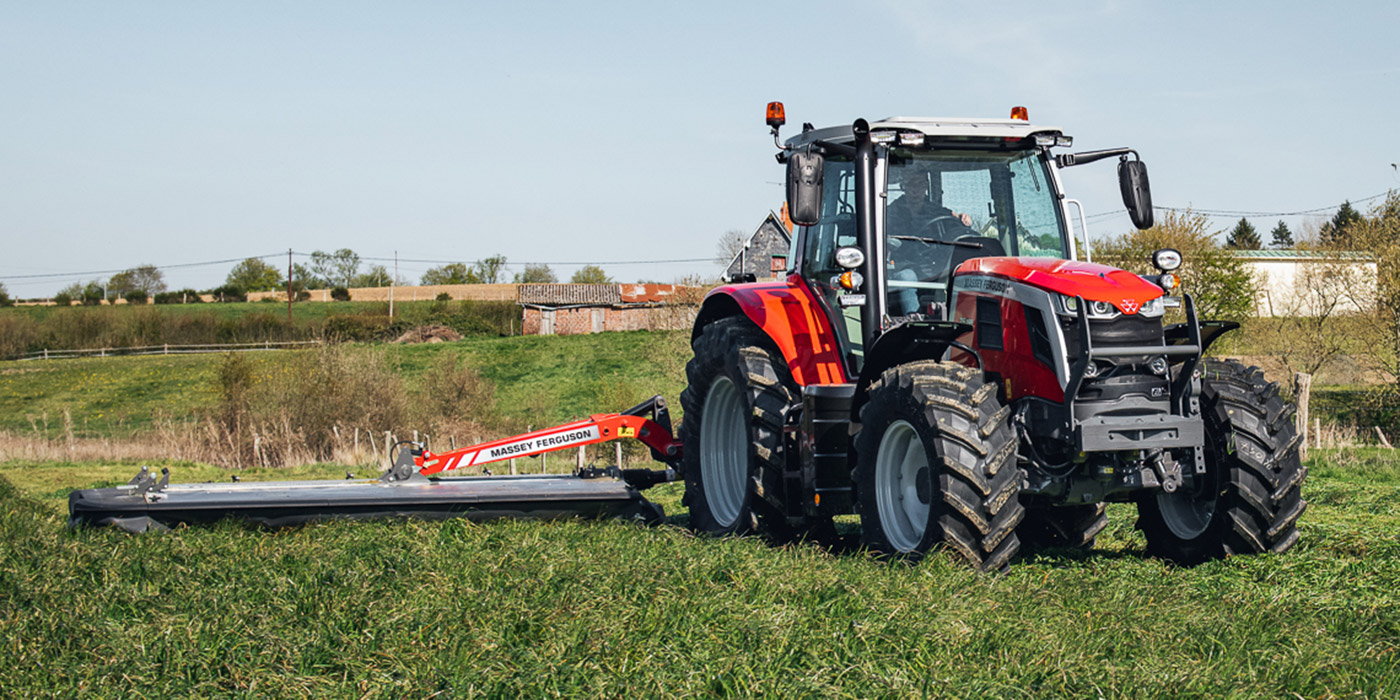

The ultimate tractor in your field

The new MF 7S incorporates the very latest technology to set new standards in ease of operation and reliability, to provide the user with the ultimate in efficiency while reducing operating costs.

Specifically designed to meet the needs of farming professionals, whatever your business and operations, the MF 7S is ideally suited for use in a range of applications from mixed farming to arable and contracting businesses.

The new MF 7S with its powerful new styling and new features is designed to captivate you from the start and be the ultimate performer in the field.

Your Next Steps

Key Benefits

Technology & Innovation

Designed to deliver ultimate efficiency and low operating costs.
AGCO Power Engine

AGCO Power Engine

6.6-litre, 6-cylinder AGCO Power engines are fitted on the MF 7S. These engines are renowned for their exceptional low rpm torque, fuel efficiency and long-term reliability.

Power Control

Power Control

The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds and ranges and select neutral, leaving the right hand free.

DYNA-6

DYNA-6

Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.

Dyna-VT

Dyna-VT

With the continuously-variable Dyna-VT transmission, Massey Ferguson engineers have developed a power transfer system that sets a new benchmark for ease-of-use and productivity.

MULTIPAD - CONTROL AT THE PALM OF YOUR HAND

MULTIPAD - CONTROL AT THE PALM OF YOUR HAND

The Multipad lever operates the transmission, the cruise control, the rear linkage, PTO, headland management, and spool valves through the integrated mini-joystick.

Automatic mode (Dyna-6)

Automatic mode (Dyna-6)

Taking automatic care of up and downshifting to maximise versatility and output. Response point is adjustable according to desired engine rpm parameters. This feature is available on the Efficient models.

ENGINE POWER MANAGEMENT - 30 HP BOOST

ENGINE POWER MANAGEMENT - 30 HP BOOST

These tractors have the considerable benefit of Engine Power Management (EPM), which gives the capability of up to a 30hp-plus power boost, plus extra torque, whenever that bit extra is needed.

BRAKE TO NEUTRAL

BRAKE TO NEUTRAL

Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.

SUPERCREEP

SUPERCREEP

Close control in specialist low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as 100m/hr to be achieved.

SUPER ECO

SUPER ECO

Dyna-6 Super Eco offers six powershift steps in four ranges for ease of operation in the field and on the road. A total of 24 speeds in both directions means there is a match for just about every operation, with top transport speeds of 40 km/h achieved.

On the MF 7S, the engine, the transmission, the steering, the PTO and the hydraulics combine to work in perfect harmony, ensuring optimum efficiency in all phases of operation.
HIGH CAPACITY REAR LINKAGE

HIGH CAPACITY REAR LINKAGE

Offering a capacity of up to 8,100kg on the Dyna-6 and 9,600kg on the Dyna-VT models, the linkage comes with four spool valves with decompression levers for easy removal.

INDUSTRY-LEADING ELECTRONIC LINKAGE CONTROL (ELC)

INDUSTRY-LEADING ELECTRONIC LINKAGE CONTROL (ELC)

ELC provides precise and responsive control of draft functions to accurately maintain the working depth for soil-engaging implements, as well as the position of mounted equipment.

Accurate Draft Control

Accurate Draft Control

MF’s digital ELC system gives the highest standards of draft control with more accurate depth settings and better ground contour following.

Hydraulic flow

Hydraulic flow

MF 7S tractors specified with Dyna-6 Super Eco transmissions are equipped with a 110 litre/min load-sensing hydraulics as standard.

Hydraulic flow on Dyna-VT

Hydraulic flow on Dyna-VT

For a dynamic hydraulic response, MF 7S Dyna-VT models are equipped with a 110 litre/min closed-centre load-sensing system as standard.

Spool valve options

Spool valve options

The MF 7S comes with four spool valves to the rear and two at the front to enable the tractor to work with a wide variety of implements. Three valves are mechanical, while two are electrical and can be controlled via the joystick.

Controls where you need them

Controls where you need them

Everything you need in one place to make the working day go smoothly. The straightforward spool valve control, with the option of a comfortable dedicated joystick for precise loader operation, is placed ergonomically on your right.

Front Linkage

Front Linkage

Up to 4,000 kg lift capacity. A heavy duty Integrated Front Linkage System (IFLS) is available as an option and is designed to match the front suspension.

A wide choice of PTO Options

A wide choice of PTO Options

A wide choice of PTO options is available with standard PTO speeds delivered at 2,000 engine rpm where maximum power is achieved.

Front PTO System

Front PTO System

1,000 RPM front PTO is available, combined with the front linkage. It allows a wide range of additional implements to be powered: reducing passes and improving efficiency.

Outstanding operation and performance to tackle any task.
2.88M WHEELBASE

2.88M WHEELBASE

The long wheelbase – 2.88m – ensures superior traction, while optimal weight distribution of very nearly 50:50 provides reassuring stability.

Quadlink2 Suspension System

Quadlink2 Suspension System

All models benefit from the Quadlink2 suspension, boosting both comfort levels for the operator and overall machine maneuverability and productivity.

ACTIVE TRANSPORT CONTROL

ACTIVE TRANSPORT CONTROL

When driving across the headland or transporting heavy mounted equipment, implement ‘bounce’ can occur. Active Transport Control is a shock absorbing system which minimises the ‘pitching’ action – automatically adjusting for different implement weights.

SPEEDSTEER

SPEEDSTEER

Reduces operator effort and provides faster turns. It enables the operator to adjust the steering ratio and select the number of turns of the steering wheel required for a given amount of steering angle turns.

Manoeuvrability

Manoeuvrability

Great manoeuvrability helps improve productivity when turning on the headland in the field as much as it does for loader operations or negotiating narrow roads.

BALLASTING FOR FLEXIBILITY

BALLASTING FOR FLEXIBILITY

The MF 7S is available from the factory with additional front and rear weights to exactly match your needs.

Gross Vehicle Weight

Gross Vehicle Weight

The maximum permitted weight of the MF 7S ranges from 11 to 14 tones depending on the model - MF 7S. 155, 165 & 180 (11t), MF 7S.190 (12.5t) and MF 7S. 210 (14t).

Designed for efficiency and maximum operator comfort.

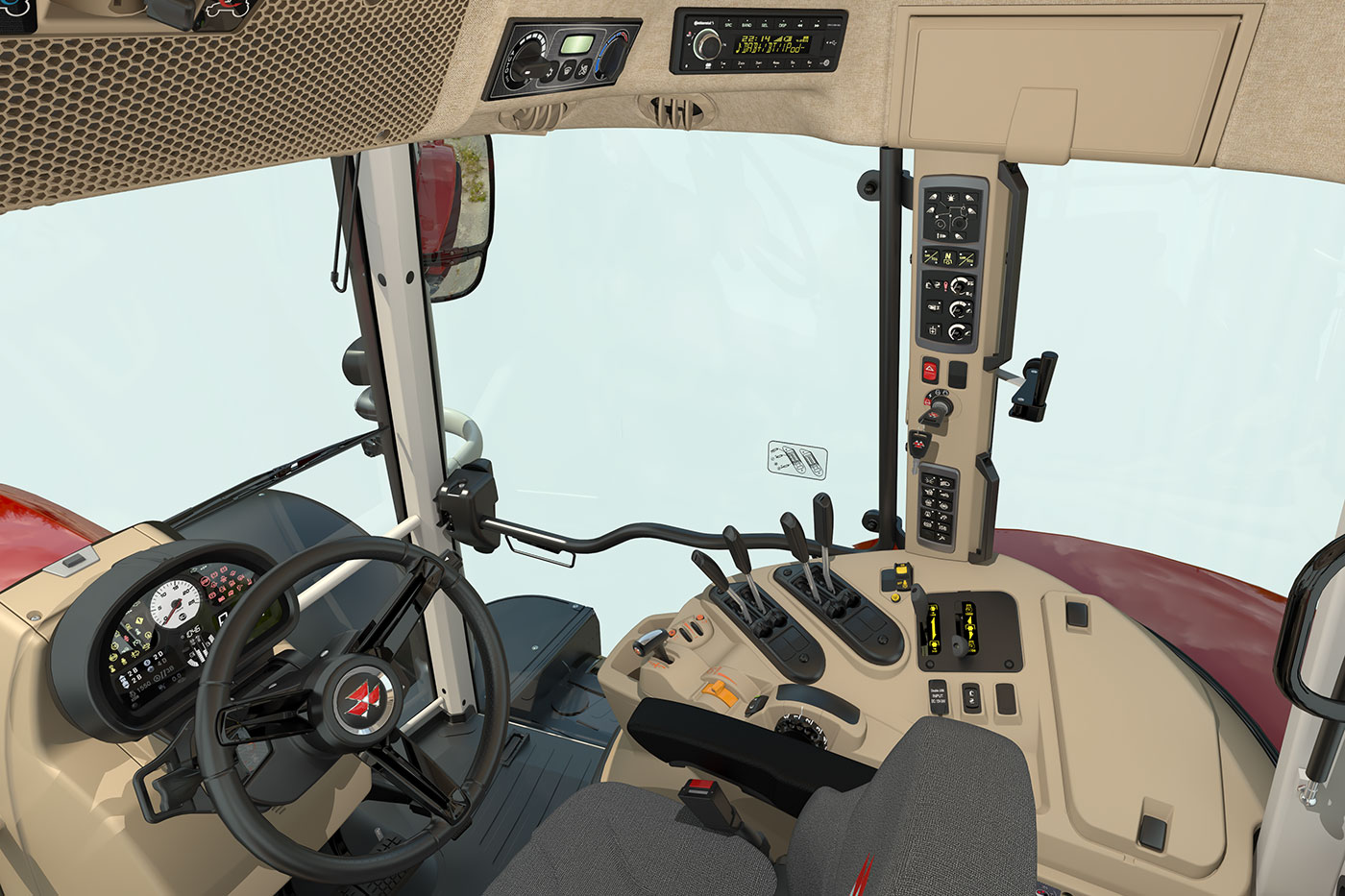

Ergonomics

Ergonomics

Operators will find everything they need carefully arranged to make driving a pleasure. Easy access to the cabin and all major controls conveniently at hand on the right armrest.

New Dashboard

New Dashboard

Operators will appreciate the slim new dashboard. This clearly displays operating data on its 70mm x 52mm, colour ‘Set up and Information Screen’ (SIS), which provides quick and easy access to a range of useful information.

Visibility

Visibility

Boosting productivity, saving time and making the difference. Work smarter with implements and drive safely on the roads with 360° cab visibility.

Mechanical Cab Suspension

Mechanical Cab Suspension

Mechanical cab suspension makes the ride smooth.

EASY AND SECURE ACCESS

EASY AND SECURE ACCESS

Large wide door, steps, rails and tiltable steering column provide best-in-class accessibility to the cab.

Working Lights

Working Lights

The addition of the 16 LED WORKING LIGHTS option transforms night into day with its outstanding brightness capacity. This package also includes day-time running LED signatures, enhancing an already very attractive design.

Design

Design

The face of the new MF 7S captures and holds your attention. At its centre is the iconic MF triple triangle logo, around which flows the powerful shape of the MF bar lights and the new MF grey sabre.

Radio/Phone option

Radio/Phone option

Access radio or your phone's functions through the Datatronic 5.

The cabs on the MF 7S provide an environment designed specifically to counter stress and fatigue by providing unparalleled comfort, simplicity and visibility.
Essential Specification

Essential Specification

Essential is the base specification for the MF 7S Series, but it is anything but basic. It provides all the key elements you would expect from MF, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

Essential Panoramic cab

Essential Panoramic cab

The Essential Panoramic cab option provides ultimate, all-round visibility for municipal operations. The wide, one-piece polycarbonate screen is extremely tough and protects operators from flying debris.

Efficient specification

Efficient specification

Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

The on and off-board technology solutions incorporated into the MF 7S Series are a clear indication of the pace of progress and innovation setting by Massey Ferguson. Information is power when it comes to get the job done more efficiently and more productively. This is the reason why Massey Ferguson delivers straightforward and dependable technology solutions resulting in unbeatable ease of use, improved productivity and profitability through higher yields, lower inputs costs and greater profits.
MF Connect

MF Connect

MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.

DATATRONIC 5

DATATRONIC 5

At the heart of the system is the intuitive Datatronic 5, touch-screen terminal, this does not only manage the tractor functions, but it allows a complete control of all ISOBUS compatible implements.

FIELDSTAR 5

FIELDSTAR 5

As an optional additional terminal, the Fieldstar 5 is designed to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward and easy-to-use experience improving efficiency, productivity and profitability.

MF Section Control

MF Section Control

With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or Crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

MF Task Doc

MF Task Doc

TaskDoc records data quickly and easily to create field records, make job reports and keep accurate records of inputs. This information can be transferred simply, wirelessly from the terminal in a format compatible with most farm management software.

MF Guide

MF Guide

Massey Ferguson’s complete guidance system for hands-free steering, available factory fit on new tractors or as an after-market installation. The system uses Trimble - RangePoint, Trimble - CenterPoint and RTK corrected signals to increase efficiency.

Available Models

Model

Max Power hp(kW)

Max Power - EPM* hp(kW)

Engine

Transmission

Max Torque** (Nm)

Lift Capacity (kg)

MF 7S.155 155 (114) 175 (129) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Dyna-6 700 8,100
MF 7S.165 165 (121) 185 (136) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Dyna-6 725 8,100
MF 7S.180 180 (132) 210 (154) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Dyna-6 750 8,100
MF 7S.190 190 (140) 220 (162) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Dyna-VT 925 9,600
MF 7S.210 210 (154) 220 (162) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Dyna-VT 925 9,600
* WITH EPM | ** @ 1,500 rpm
