Specifically optimised for the new MF 5S, the rear linkage now boasts an impressive lift capacity of up to 6,000kg (+14% vs previous range), in some specific circumstances, enabling it to lift and handle heavy mounted equipment with ease.

Fully adjustable lift rods and heavy-duty stabilisers provide plenty of adjustment for the perfect attachment and setting for a wide range of mounted and semi-mounted implements.

A wide choice of spool valves and control options help you make the most of using modern implements as well as ease operation. Depending on your tractor’s specification, you’ll find up to four spool valves to meet all your requirements.

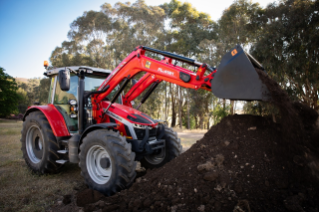

There’s straightforward mechanical control of the spool valves on Essential versions, with the addition of a comfortable dedicated joystick option for precise loader control.

In Efficient models you’ll find new, armrest-mounted fingertip switches for the 1st & 2nd spool valves, which work in combination with mechanically operated levers for the 3rd & 4th spool valves.

With its 3,000kg lift capacity (+17% vs previous range), at the ball ends, the new stronger, compact Integrated Front Linkage System enables you to take full advantage of the power of the MF 5S Series.

Redesigned to match the new optional front suspension, the close-coupled front linkage is an integral part of the design, maintaining the tractor’s compact dimensions, while enhancing stability and manoeuvrability.

The latest Electronic Linkage Control (ELC) system provides precise and responsive operation of the linkage functions, ensuring accurate control of the working depth for soil-engaging implements and working height for mounted implements.

Accurate electronic control provides convenient linkage operation. The ELC potentiometer is positioned to the right of the operator for comfortable and easy use, providing precise control of implement depth as well as lifting and lowering the linkage.

The Electronic Lift Control panel provides straightforward adjustment of other rear linkage functions helping to improve productivity.

Useful standard features include Active Transport Control, which automatically absorbs shocks on the road, as well as external lift/lower controls, located on the right and left-hand fenders.

The system provides plenty of flow and pressure to the linkage and external hydraulic functions for lifting heavy equipment or powering ancillary accessories.

This system employs a simple, novel design to generate continuous flow. This provides full flow to separate functions, such as the linkage and spool valves, as well as provide higher efficiency and power for loader applications.

This system with the fastest hydraulic response. This employs a variable displacement swash plate pump and load-sensing control to deliver high flowrates at low engine speeds, helping to maintain high output with economy.

A straightforward driveline to the Independent PTO delivers maximum power and efficiency. There is a choice of three speeds, selected easily using rocker switches, conveniently located on the console.

The PTO is engaged electro-hydraulically, using a three-position safety switch (On, Off, and Lock/Brake). The PTO can also be engaged and disengaged using external fender-mounted switches.

A smart transmission controller automates frequently-used functions, including differential lock, PTO and Speedmatching transmission.

Hydralock delivers true four-wheel drive with fast and fully simultaneous engagement of the front and rear differential locks.

Centre-mounted (enclosed) driveshaft offers excellent ground clearance.

A new, stronger suspended front axle offers an industry-leading 4m turning radius. Working with the new 3t capacity front linkage, which can now lift an extra 500kg, it helps improve efficiency, enabling the tractors to use larger front-mounted equipment.

Extra comfort is offered by the electronically-controlled hydraulic suspension, which uses two longer stroke cylinders (100 mm) and three accumulators to absorb shocks.

This new, optional feature enables the operator to adjust the steering ratio and select the optimum number of turns of the steering wheel required for a given amount of steering angle turns.

Specially designed cutaways in the chassis and bonnet help deliver a turning radius of 4m - one of the best on the market, making it easier to access confined areas and buildings - helping you work more easily.

Safe and efficient braking from large disc brakes cooled by constant pressure lubrication. For even better safety in transport applications, this system is now completed by pneumatic or dual hydraulic lines as well as an ABS socket.

The rear hitch has been completely redesigned and increased to make coupling quicker, easier and safer and comes with a new choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar.

Large doors and wide, well-spaced steps offer easy access to the MF 5S cab. Here you will find all operating information is where you need it on the comprehensive new dashboard.

The new armrest houses all the key elements, offering a blend of simplicity and ease of use, with all main functions ergonomically grouped. Here you will also find quick and convenient controls for other items such as Bluetooth phone and radio.

The MF 5S helps you to boost productivity, save time and improve performance thanks to its 360° visibility, easy access and new cab suspension.

Features include automatic beacon activation on the road and a ‘return home’ function, which automatically switches off the worklights and has a comfort cab light delay so you can safely leave.

There’s also extra sockets for mobile phones or laptop, radio and MP3 player (USB, Aux and CD), Bluetooth connection, DAB + digital radio, telescopic side mirrors and electric de-icing, plus automatic air conditioning.

The addition of the option of up to 12 LED working lights provides outstandingly bright illumination.

For top class comfort, you’ll find a choice of seats to suit the work you do. Mechanical suspension is ideal for road applications, while a choice of automatic, air suspended seats give extra comfort for long working days.

The clear, sharp and easy to read 70mm x 52mm colour screen shows a range of information including tractor performance, working area, working distance, fuel and AdBlue® consumption as well as engine and transmission temperature.

A choice of cab heights and roof types allow you to tailor your MF 5S Series tractor to offer excellent access to buildings and suit your exact needs.

The standard cab position has a fully flat floor and, combined with the standard roof and cab suspension option, offers optimum comfort.

The low position cab structure is the same, but the frame is mounted lower down, reducing the overall height and providing excellent access to buildings.

With the introduction of the MF 5S, Massey Ferguson continues its striking new era design first seen on the advanced, new MF 8S Series, following the same striking ‘neo-retro’ livery with modern headlights and LED signature.

This design pays tribute to the brand’s heritage, incorporating an interpretation of the iconic MF grey sabre stripe on the side and horse head collar motif on the bonnet, which dates back to the MF 100 series.

Essential is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from MF, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

The Essential Panoramic cab option provides ultimate, all-round visibility for maintenance operations. The wide, one-piece polycarbonate screen is extremely tough and protects operators from flying debris.

Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

The Datatronic 5 system literally puts all the functions of the MF 5S tractor at the operator’s fingertips via its smart 9in touch-screen.

The new Fieldstar 5 terminal is designed in order to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward an easy to use experience, improving efficiency, productivity and profitability.

MF Guide is MF’s full featured, hands free steering system, available on new tractors or as an after-market installation. It is capable of delivering sub-metre, decimetre and centimetre accuracy, increasing the efficiency of your farming.

With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or Crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

The MF Task Doc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.

MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.
