Latest Generation of High Output Tedders

Introducing the MF TD Series

Download Brochure

When it comes to drying hay, it’s nearly impossible to beat Mother Nature.

Of course, farmers have utilised nature’s resources – like the wind and sun – for as long as seeds have been planted in the ground. Today, you can accelerate Mother Nature’s gifts by spreading the crop with a professional-grade Massey Ferguson TD Series tedder.

Current Offers & Promotions

MF TD Series Tedders

ORDER EARLY WITH 0% P.A. FINANCE AVAILABLE*

Offer valid to February 28, 2025.

Key Benefits

Image Gallery

Technology & Innovation

Tine Arms

The tine arms are made of a tough, galvanised flat steel bar, which allows a wide contact surface between tine and rotor disc. This ensures excellent power transmission even under the harshest of working conditions.

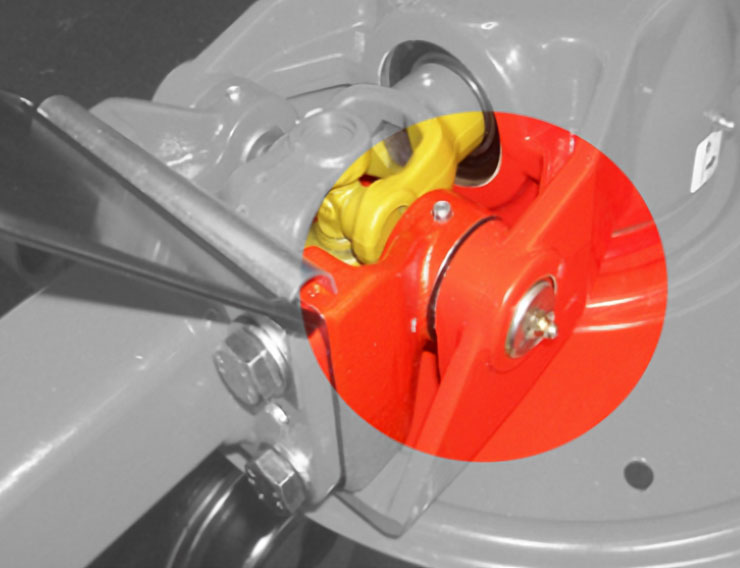

Sturdy Frame Joints

The individual rotor frames are connected via sturdy frame joints with special flange sleeves and hardened pins. All joints can be relubricated for extra reliability and durability.

Rotor Head

Massey Ferguson rotor heads have an enclosed design which protects all important components from dirt and dust. This design provides years of trouble-free service.

Power Train

The individual rotors are driven via a generously dimensioned hexagonal shaft and robust universal joints. This type of power transmission is smooth and reliable and free from backlash.

Square Frame Tubes

All MF hay tedders are equipped with thick-walled, strongly dimensioned square frame tubes which ensure excellent rigidity and a very long service life.

As with all Massey Ferguson hay tedders, the forage is picked up by the tines and turned gently, without damage. A light, loose and well mixed mat of forage is created, to help ensure a top quality end-product.

Comb Effect

Equal-sided tines allow you to achieve an optimum mixing of your high quality forage. During the process, the different layers of forage are perfectly mixed together and turned, providing the optimum production of high-quality forage.

Equal-Sided Tines

Tines with sides of equal length also provide the benefit that you do not need right-hand and left-hand tines but only one kind of tine, which makes spare parts management easier.

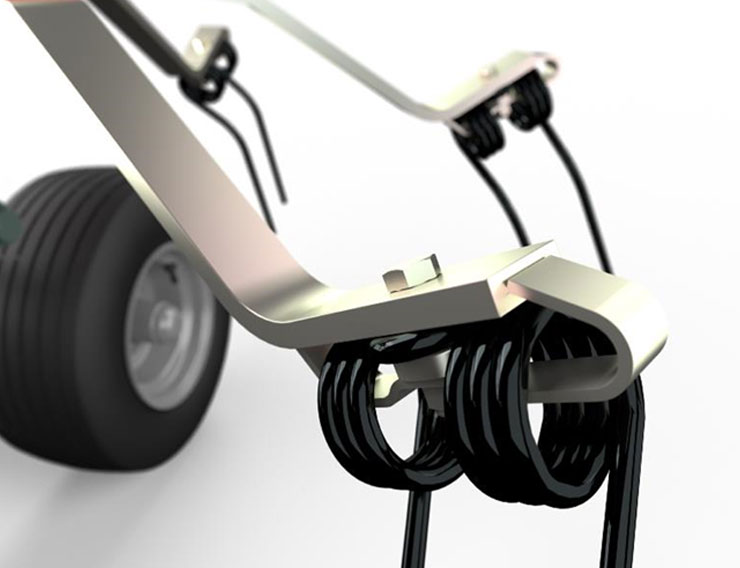

Tine Loss Protection

This protects machines which are following behind and also your valuable livestock. The tines are secured under the tine arm. This arrangement has the advantage that the upper side is smooth and, as a result, forage will not be left hanging.

Super C Tine

The Super C tine has a tine diameter of 9.5 mm, a coil diameter of 70 mm and six windings, making it one of the most efficient on the market and typical of the high quality of each and every Massey Ferguson hay tedder.

Super C Quality

The Super C quality feature guarantees a high level of quality and ensures an extremely long service life. The tines used at Massey Ferguson have to undergo a test cycle and survive 200,000 impacts without damage.

The new MF TD X tedder offers many benefits to users, thanks to its unique hook-shaped tines, which operate at the perfect speeds to deliver unsurpassed tedding capacity.

Hook-Shaped Tines Tedding Action

The hooked shape, working angle and the combination of a short and long tines produce an exceptional tedding action: Moves up to 50% more crop on each revolution, Gentle operation protects the crop, Minimises sward damage and crop contamination.

Flexible Hooked Tines

Unique, flexible hooked tines offer clean, even crop pick up, less tine wear and lower risk of breakages.

Hooked Tines - Better Spreading

Better spreading: Longer tines rotate 12% faster than the shorter tines

Hooked Tines - Shorter Tine Movement

Slower moving, shorter tines move lighter and drier top material less far.

Hooked Tines - Longer Tines Movement

Longer tines rotate 12% faster and work further down the crop, collecting the heavier, wetter material and throwing it further - onto the drier material to enhance wilting.

Thanks to the SLS (Security Lock System) from Massey Ferguson, maximum safety for your machine is guaranteed during folding operations.

SLS - Security Lock System

SLS is an automatic, hydraulically-activated switch-off and positioning system, with integrated freewheel which interrupts the flow of power to the rotors when the halves of the machine are folded up.

Available Models

Model	Machine Designation	Working Width (m)	Number of Rotors	Tine arms per rotor
MF TD 524 DN	Three-point linkage	5.2	4	6
MF TD 676 DN	Three-point linkage	6.6	6	6
MF TD 776 DN	Three-point linkage	7.7	6	6
MF TD 868 DN	Three-point linkage	8.6	8	6
MF TD 776 TRC	Transport chassis	7.7	6	6
MF TD 868 TRC	Transport chassis	8.6	8	6
MF TD 1008 TRC	Trailed Tedder	10.2	8	6
MF TD 1310 TRC	Transport chassis	12.7	10	6
MF TD 776 X DN	Hook Tines	7.7	6	6
MF TD 1028 X TRC	Hook Tines	10.2	8	7
MF TD 1310 X TRC	Hook Tines	12.5	10	7
