Setting New Standards. Extending Expectations.

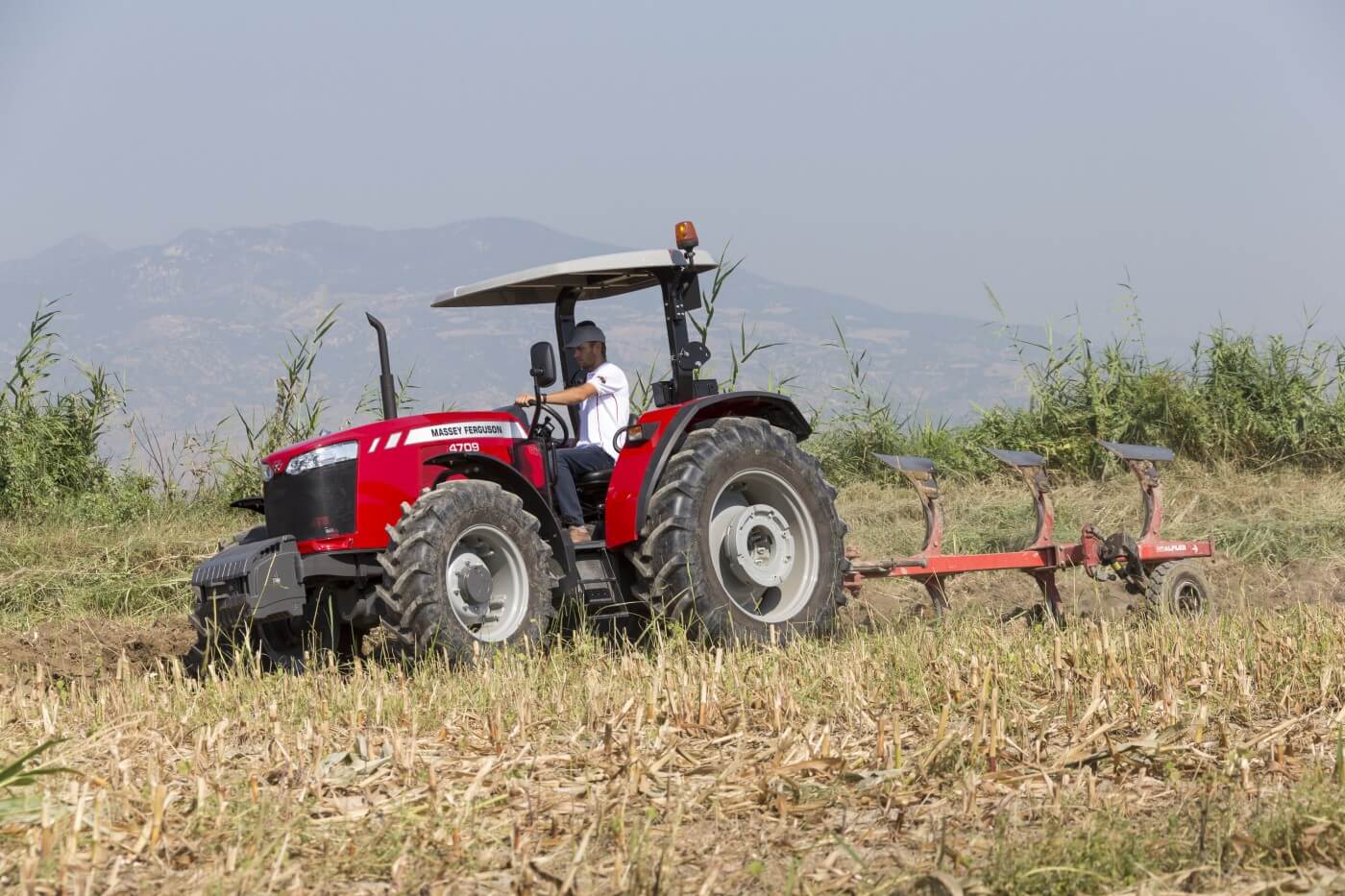

Massey Ferguson has always provided innovative, but practical solutions to the farmer’s needs to answer the challenges of the time. The MF 4700 Global Series continues this tradition by offering a highly modern, high performance, heavy duty, straightforward range of tractors that provide exceptional efficiency for every type of farmer all over the world.

With its entirely new - yet simple- design, manufactured in state of the art factories across the Globe, with efficient drivelines and high level of comfort, the MF 4700 is definitely designed to be the new workhorse of the world - it really brings exceptional value for money for any sector!

Key Benefits

Technology & Innovation

The muscle to tackle any task.
Super Creeper Option

Super Creeper Option

A Super Creeper option is also available when the slowest speeds, down to 140m/hr, are required for the job in hand.

Driveline

Driveline

Every component of the chassis has been designed from a blank sheet of paper to boast immense strength, a major factor in an agricultural tractor’s overall performance. This modern design provides versatility, power, durability and outstanding capability.

All-New Synchronised Transmission

All-New Synchronised Transmission

All-new synchronised transmission which provides a total of twelve forward and twelve reverse speeds courtesy of two ranges.

AGCO POWER 3 Cylinder Engine

AGCO POWER 3 Cylinder Engine

3.3 Litre AGCO POWER 3 Cylinder Engine - Renowned for reliability, ruggedness and fuel economy.

AGCO POWER 4 Cylinder Engine

AGCO POWER 4 Cylinder Engine

Renowned for reliability, ruggedness and fuel economy, a 4.4-litre AGCO Power four-cylinder engine provides the heart of this Tractor Series.

Comfort Control

Comfort Control

Smooth or quick shuttling – you choose by simply adjusting the Comfort Control to suit the job – slow and smooth or fast and efficient.

Power Control

Power Control

The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shift between forward/reverse ranges as well as select neutral, leaving the right hand free.

A tractor that has been designed with simplicity of operation at its heart doesn’t have to have a basic operator environment. Designed from the outset with an emphasis on comfort and ease of use, the MF 4700 Series tractors make hard work a pleasure.
Neatly Positioned Gear Levers

Neatly Positioned Gear Levers

The right speed for each job is easily selected using gear levers that are within easy reach, yet positioned neatly to hand of the driver, ensuring an unimpeded passage when mounting/dismounting.

Low Transmission Tunnel

Low Transmission Tunnel

A low transmission tunnel creates a spacious operator environment.

Manually-Operated Controls

Manually-Operated Controls

Once seated, manually-operated controls are sited in the most ergonomic positions, making them comfortable to operate and reliable even over the course of many thousands of tractor hours.

Grab Rails

Grab Rails

Grab rails mounted outside the operator station provide easy access to the footsteps, mounted directly to the machine.

The key to reliable, heavy-duty machinery is to choose a tractor that meets the requirements of today’s modern implements and utilizes them to their full potential within a wide range of agricultural applications. There is no limit to the range of powered equipment that can be put to work behind the MF 4700 Series tractors.
4WD Front Axle

4WD Front Axle

Specified with a limited slip differential, the front axle boosts traction and stability with maximum simplicity and minimal maintenance.

Direct Drive PTO

Direct Drive PTO

Each model is fitted with a 35mm six-spline PTO shaft providing 540, 540E or 1000 PTO speeds and protected by an independent PTO clutch (IPTO).

55 Degree Steering Angle

55 Degree Steering Angle

Manoeuvrability is maximised by the front axles 55° steering angle.

Open-Centre Hydraulic System

Open-Centre Hydraulic System

A simple open-centre hydraulic system, powered by two gear pumps, the 27 litres/min pump provides all the internal services, whist the 65 litres/min pump allows the electronically-controlled rear linkage to lift 3,000kg.

Auxiliary Spool Valves

Auxiliary Spool Valves

The oil flow is also available via the two standard auxiliary spool valves to operate implement hydraulic functions while the other pump operates the steering operation of the 4WD clutch reverse shuttle and the PTO.

IPTO

IPTO

Control is via a modern independent PTO (IPTO) clutch, which is electro-hydraulically engaged and ‘eases’ the engagement, to protect the driveline by gradually taking up the drive.

Electronic Linkage Control - ELC

Electronic Linkage Control - ELC

The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements plus working height for other implements.

Available Models

Models

Max Power (hp)

Engine

Transmission

Max Torque (Nm)

Lift Capacity (kg)

MF 4707 T2 72 AGCO Power 3.3L, 3 Cylinder, Tier 2 Mechanical Synchronised 12 x 12 296 3,000
MF 4708 T2 82 AGCO Power 4.4L, 4 Cylinder, Tier 2 Mechanical Synchronised 12 x 12 342 3,000
