MF Disc Harrows

Products

Perfect fit for MF Tractors

Introducing the MF Disc Harrows

Massey Ferguson offers a comprehensive range of top quality disc harrows from mounted, to tandem and trailed.

Each model has a heavy-duty frame, hydraulic transport and depth control wheels, thick discs and robust and independently adjustable scrapers.

The perfect match for MF tractors from 35 to 130hp, each MF disc harrow is equipped with quick and easy attachments for hassle-free hitching, and a hydraulic opening and locking system allowing adjustment according to soil conditions.

Features

Mounted Offset:

Front and rear bodies in offset made of rigid frame
28 mm square disc axles made of treated steel.
28/9”square 29 mm greaseable taper roller bearings
Front notched and rear plane disc blades
Fixed headstock in an articulated assembly.
Robust disc scrapers with independent adjustment
Working angle manually adjustable with greaseable telescopic rod.
Disc spacing: 23 cm

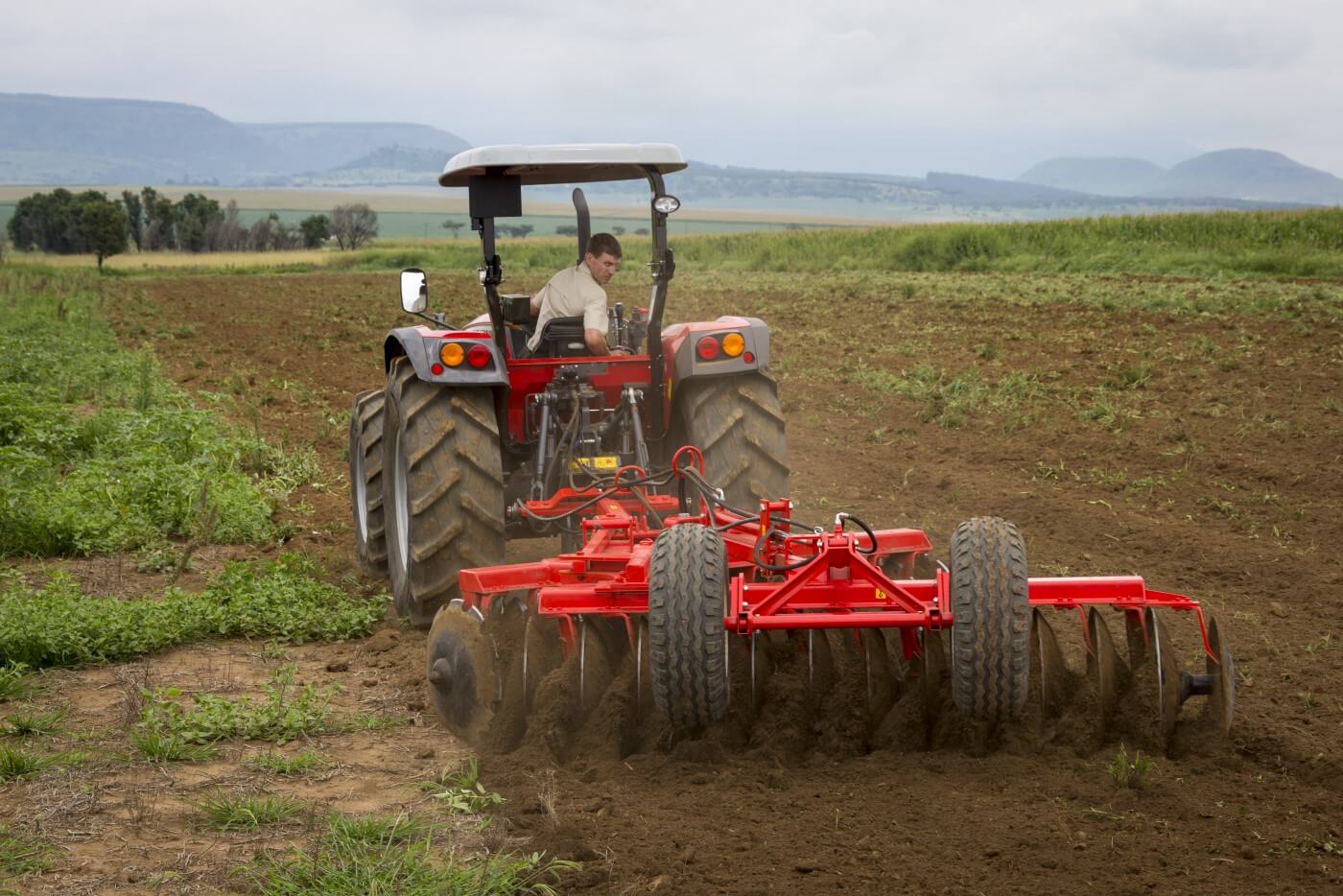

Trailed Offset:

Front notched and rear plane disc blades
32 mm square disc axles made of treated steel
32/9” bearings square of 33 mm with 2 taper roller bearings protected by double lip seal
Hydraulic opening and lock system
Hydraulic transport wheels
Disc scrapers with independent adjustment
Signaling kit fitted as standard
Possibility of lateral displacement of the rear body
Disc spacing: 23 cm

Heavy Duty Trailed Offset:

Main frame in transversal and longitudinal tubes
38 mm square discs axles in special treated steel
Front notched and rear plane disc blades
38/9 “bearings square of 40 mm with 2 taper roller bearings protected by double lip seal
Welded steel plate drawbar fixed to the main frame
Hydraulic opening of disc gangs
Hydraulic transport and depth control wheels
Disc spacing: 23 cm & under-beam clearance: 0.69 - 0.71m.
Rear Rollers

Tandem Trailed Offset:

150x100 mm double C shape rigid frame made of high elastic steel.
Front notched and rear plane disc blades
38 mm square discs axles in special treated steel
38/9” bearings square of 40 mm with 2 taper roller bearings protected by double lip seal.
Hydraulic transport and depth control wheels
Robust disc scrapers with independent adjustment
Mechanical opening of the working angle.
Working depth mechanical adjustment in the wheel train.
Disc spacing: 23 cm & Under-beam clearance: 0.71 m

Image Gallery

Available Models

Model	Type	Number of Discs	Maximum Working width (m)	Weight (kg)	Minimum recommended power (HP)
MF LD18-20	Mounted offset	18	2	681	45
MF LD20-18	Mounted offset	20	2	395	30
MF OD18-24	Mounted offset	18	2	771	60
MF OD20-24	Mounted offset	20	2.25	835	65
MF OD22-24	Mounted offset	22	2.45	885	70
MF OD18-26T	Trailed offset	18	2	850	70
MF OD20-26T	Trailed offset	20	2.5	950	85
MF OD22-24T	Trailed offset	22	2.45	1,330	75
MF OD24-26T	Trailed offset	24	2.7	1,545	100
MF OD20-26THD	Heavy Duty Trailed Offset	20	2.25	1,830	90
MF OD24-26THD	Heavy Duty Trailed Offset	24	2.7	2,199	100
MF OD28-26THD	Heavy Duty Trailed Offset	28	3.15	2,420	120
MF OD32-26THD	Heavy Duty Trailed Offset	32	3.6	2,570	130
MF TD26-26T	Tandem trailed offset	26	3.05	2,940	95
MF TD30-26T	Tandem trailed offset	26	3.5	3,040	115
MF TD34-26T	Tandem trailed offset	34	3.95	3,110	130
MF TD38-26T	Tandem trailed offset	38	4.4	3,400	140
