Flexibility is the key

Introducing the MF Activa S

Designed to offer choice for farmers

The new Massey Ferguson Activa S combine range has features for performance and practicality. The operator has been given new higher levels of comfort in this class while offering simple straightforward choices of specification.

Medium to large farmers often have a variety crops to combine and each machine needs to offer the best selection of settings to get the output required with a good clean sample. Surveys show that the operators of these machines need practical solutions to do this and value simplicity and comfort.

Key Benefits

VR
Image Gallery

Technology & Innovation

Head first feed – start well, finish well - your header is critical to how well your combine performs. With a lifetime of experience, Massey Ferguson offers you a choice of its premium PowerFlow™ table or high capacity FreeFlow™ tables. Both have features for productivity like Automatic Reel speed and advanced table height control.

FreeFlow

With cutting widths from 4.2 m – 7.6 m, the Freeflow™ table features a welded frame to which bolt-on panels (such as the table bottom plates) are mounted, making it extremely easy to replace parts when necessary.

PowerFlow

PowerFlow™ is the industry benchmark table for high capacity in all conditions. The proven belt drive powers the crop into the combine ensuring seamless feeding.

Power Feed Roller

The Power Feed Roller (MCS Version only) at the front of the main crop elevator gives a consistent crop flow from the table into the main crop elevator. It can be reversed simply and effectively from the cab.

Optional Rape Auger

The optional rape auger for the PowerFlow table increases the flow of tall crops into the elevator thereby increasing the output considerably. Two electrical side knives complete the rapeseed kit.

Full Width Auger Fingers

Full width auger fingers on the Freeflow™ table increase auger throughout, ensuring positive and fast feed into the main crop elevator.

PowerFlow Knife

The knife is a massive 1.14 m from the table auger, so vision and performance are optimum. The rugged PowerFlow™ belts power the crop away from the knife and into the main crop elevator at a consistent speed.

Schumacher Knife - FreeFlow Table

The Schumacher knife is the best performing knife in the business at 1,254 cuts a minute. Self-cleaning and consistently sharp, this keeps the crop moving in tough conditions.

TerraControl II

TerraControl II provides a mix of automatic functions for the standard table-levelling (FreeFlow™ or PowerFlow™), ground-following system (Field pressure) and headland management – all the metrics are controlled from the operator’s multifunction lever.

Robust, reliable and efficient: the core of MF ACTIVA S is designed to ensure best return of investment for farmers.

Electrical Deflectors

A twin rotor multi adjustable chaff spreader is available. Electrical deflectors for the straw chopper are available as an option, which allows the straw to be directed from the uncut crop if required.

Multicrop Separator - MCS

The MCS provides a massive separation area to remove as much grain as possible before it reaches the walkers. The MCS has the ability to rotate the concave over the top of the rotary separator when it is not required.

Straw Walker

The long straw walkers feature four steps with ‘active walls’. The 21 cm high, vertical sections of the walker steps are made up of permeable grids. The front steps of the straw walkers are reinforced for maize.

Straw Chopper

The straw chopper is specifically designed to provide chopping and spreading performance suitable for farmers using reduced tillage operations. The knives are serrated to give a clean chop and reduce the power requirement.

Shaker Shoe

The sieve profile is the key to shaker shoe performance. The high performance sieves are specially designed with vertical tags which improve the sample and allow you to open the sieves wider for greater throughput.

8600 Litre Grain Tank

The grain tanks have a high capacity of 8,600 litres, while the unloading rate of 105 l/sec is fast for quick unloading. The turret auger can cope with the highest of trailers in the field or on the road.

Threshing Drum

The threshing drum has added weight in the form of ballast bars to increase the inertia behind the rasp bars as they thresh the heads. This reduces load on the drives, power requirement and fuel consumption.

Concave

The concave has differentiated wire spacing, and the rear section of the concave has half as many wires as the front section. This principle provides the optimum balance between high threshing capacity and good grain flow through the concave.

Flexibility is the key - Designed to offer choice for farmers, the Massey Ferguson ACTIVA S combine range has features for performance and practicality to adapt to all variety of crops and harvesting conditions.

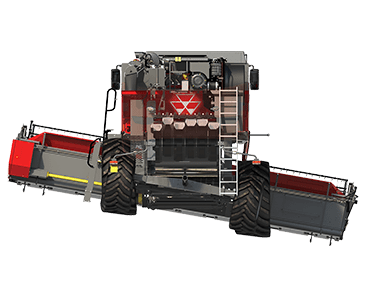

NEW ParaLevel System

Simple parallel linkage makes for effortless change of angle in the field. Both the MF 7345 S MCS and MF 7347 S MCS are available as a ParaLevel version, this patented system offers leveling with the table on slopes up to 20% (4WD) and 15% (2WD).

Rice Cylinder - Concave Version

A special Rice cylinder / concave version can be ordered with unique peg and tooth design, specifically for separation in tough conditions.

Fundamental elements of good cab design include space, comfort and visibility. The new Proline cab offers all of these, ensuring complete operator comfort at all times. Visibility is excellent with a panoramic view for the operator including header, stubble, unloader and the rear with large electrically adjustable mirrors.

Membrane Keypad

The membrane keypad is located directly on the right side of the armrest and is used to operate the principle combine functions. The soft, raised keys lead directly to the individual menus on the TechTouch 2 terminal.

PowerGrip Armrest

The right-hand armrest is the central operating unit where the key engagement switches sit with the throttle control. Designed with a large soft pad to cushion the arm during a long day allows for maximum comfort.

TechTouch 2 Terminal

Perfectly in view and reach is the TechTouch 2 terminal which provides all the relevant performance information for setting the combine. The touch screen controls with clear definition are easy to use and adjust.

PowerGrip Lever

The new control interface for the operator falls naturally to hand – the PowerGrip multifunction lever sits on top of the armrest which houses all the switches for the commonly used controls.

Night Working Package

Night working package includes H9 high intensity lights for all-round excellent visibility late into the evening.

AGCO Power Engine. The powerful heart.

Good design makes for easy work - Getting the best from well-designed features on a day-to-day basis.

One Piece Panels

One piece panels with lights allow for quick inspection access with lights for night work.

Easy Refueling

Easy refueling - both tanks are located next to each other for easy access.

Easy Inspection

Ladder rail makes inspection easy and safe.

Radiator Cleaning

Safe and simple access for radiator cleaning.

Available Models

Model	Max Power (hp)*	Grain Capacity (l)	Unloading speed (l/s)	Max cutting width (m)	Engine
MF Activa S 7345	243	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
MF Activa S 7345 MCS	243	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
MF Activa S 7345 MCS ParaLevel	243	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
MF Activa S 7347	306	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
MF Activa S 7347 MCS	306	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
MF Activa S 7347 MCS ParaLevel	306	8,600	105	7.6	AGCO Power 6 cylinder, 7.4 Litre
* All MF Activa S 7347 data includes 30 hp boost.
