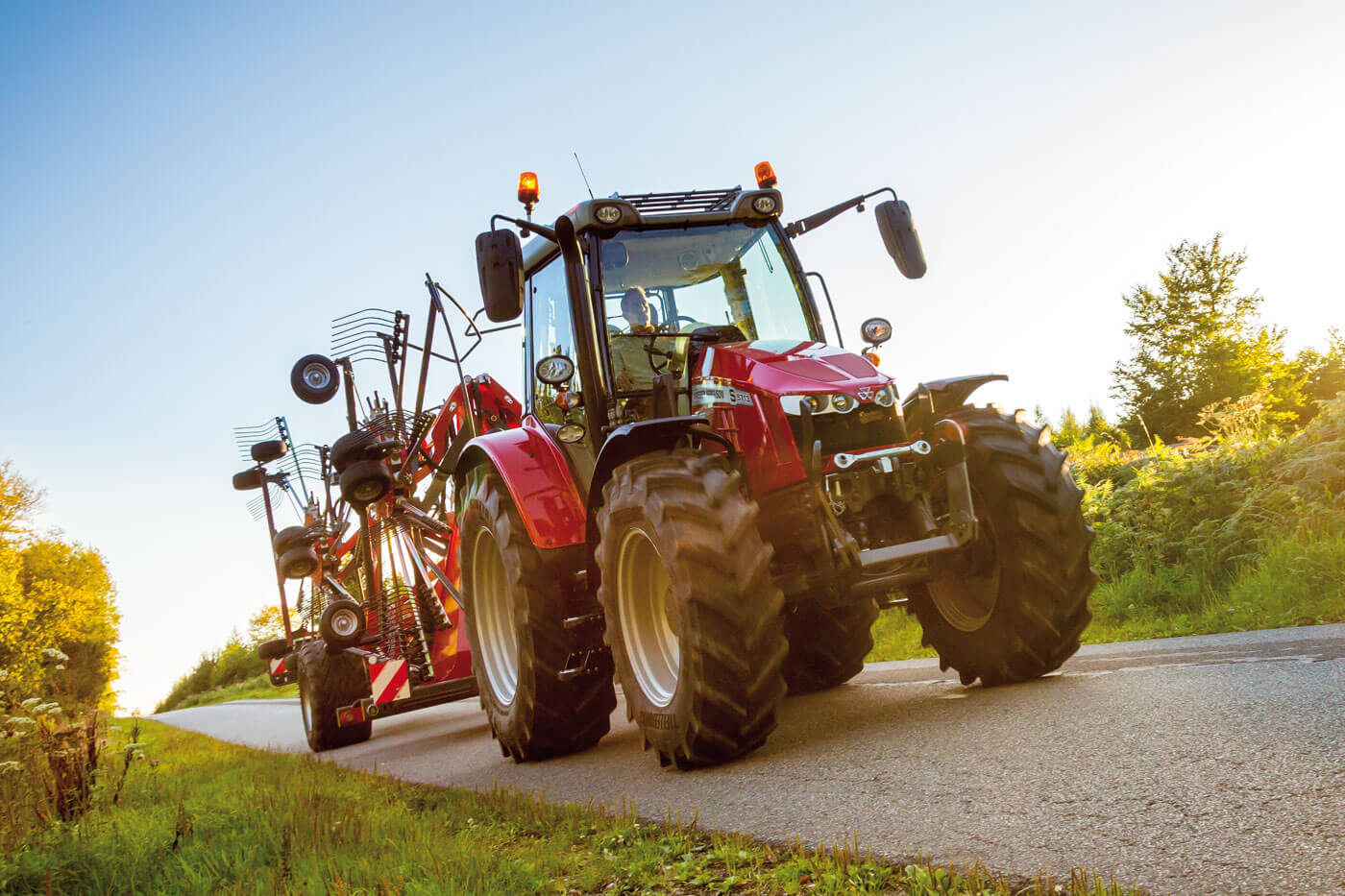

The MF 5700 S medium horsepower tractor offers excellent manoeuvrability and versatility for work in the yard, in the field or on the road – a superb all-rounder!
With its upgraded design, high performance driveline, high levels of comfort and wide choice of equipment and options, the MF 5700 S is indisputably designed to tackle any challenges and any tasks on the farm, quickly and efficiently - it is truly the ultimate go-anywhere, do-anything tractor!
Key Benefits
Low cost of operation
AGCO Power, High efficiency SCR “All-in-One”, Four-Cylinder 4.4 Litre Tier 4 Final engines offer more power and torque and lower fuel and AdBlue® consumption. Electronic wastegate on the turbocharger for improved performance and emission control. Super Eco transmission for roadwork and Eco PTO. Automatic low idle engine speed reduces fuel consumption.
Efficient drivelines bring higher productivity
Full engine power available at any time. Proven Dyna-4 and Dyna-6 Transmissions with optional AutoDrive for automatic shifting; perfect engine and transmission partnerships for maximum outputs.
Ultimate comfort for a more productive working day
Large choice of cabin and roof types associated with a simple & efficient suspension system and front axle suspension. Easy cab access and best visibility on the market with large glass area and sloping bonnet. Essential information always to hand with the new dashboard with Set Up and Information Screen (SIS) and Datatronic 4 console to manage all tractor's functions. Perfect ergonomics with all controls laid out for easy operation.
Ability to work faster with the widest implements
Versatility - Time is money. Choice of three high flow hydraulic systems. Front linkage with position control. New rear hitch options for easier, faster attachment. Speedsteer for smoother, quicker headland turns.
Low repair and maintenance cost
The MF 5700 S has a number of maintenance-free components including the Tier 4 Final engine’s after-treatment system. Easy access for daily maintenance. Repair and maintenance MFCare contracts are available to help farm businesses to operate competitively and cost-effectively, while an extensive dealer network means that support is always just a phone call away.
Low cost of operation
AGCO Power, High efficiency SCR “All-in-One”, Four-Cylinder 4.4 Litre Tier 4 Final engines offer more power and torque and lower fuel and AdBlue® consumption. Electronic wastegate on the turbocharger for improved performance and emission control. Super Eco transmission for roadwork and Eco PTO. Automatic low idle engine speed reduces fuel consumption.
Efficient drivelines bring higher productivity
Full engine power available at any time. Proven Dyna-4 and Dyna-6 Transmissions with optional AutoDrive for automatic shifting; perfect engine and transmission partnerships for maximum outputs.
Ultimate comfort for a more productive working day
Large choice of cabin and roof types associated with a simple & efficient suspension system and front axle suspension. Easy cab access and best visibility on the market with large glass area and sloping bonnet. Essential information always to hand with the new dashboard with Set Up and Information Screen (SIS) and Datatronic 4 console to manage all tractor's functions. Perfect ergonomics with all controls laid out for easy operation.
Ability to work faster with the widest implements
Versatility - Time is money. Choice of three high flow hydraulic systems. Front linkage with position control. New rear hitch options for easier, faster attachment. Speedsteer for smoother, quicker headland turns.
Low repair and maintenance cost
The MF 5700 S has a number of maintenance-free components including the Tier 4 Final engine’s after-treatment system. Easy access for daily maintenance. Repair and maintenance MFCare contracts are available to help farm businesses to operate competitively and cost-effectively, while an extensive dealer network means that support is always just a phone call away.
Low cost of operation
AGCO Power, High efficiency SCR “All-in-One”, Four-Cylinder 4.4 Litre Tier 4 Final engines offer more power and torque and lower fuel and AdBlue® consumption. Electronic wastegate on the turbocharger for improved performance and emission control. Super Eco transmission for roadwork and Eco PTO. Automatic low idle engine speed reduces fuel consumption.
Efficient drivelines bring higher productivity
Full engine power available at any time. Proven Dyna-4 and Dyna-6 Transmissions with optional AutoDrive for automatic shifting; perfect engine and transmission partnerships for maximum outputs.
Ultimate comfort for a more productive working day
Large choice of cabin and roof types associated with a simple & efficient suspension system and front axle suspension. Easy cab access and best visibility on the market with large glass area and sloping bonnet. Essential information always to hand with the new dashboard with Set Up and Information Screen (SIS) and Datatronic 4 console to manage all tractor's functions. Perfect ergonomics with all controls laid out for easy operation.
Ability to work faster with the widest implements
Versatility - Time is money. Choice of three high flow hydraulic systems. Front linkage with position control. New rear hitch options for easier, faster attachment. Speedsteer for smoother, quicker headland turns.
Low repair and maintenance cost
The MF 5700 S has a number of maintenance-free components including the Tier 4 Final engine’s after-treatment system. Easy access for daily maintenance. Repair and maintenance MFCare contracts are available to help farm businesses to operate competitively and cost-effectively, while an extensive dealer network means that support is always just a phone call away.
Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.
Dyna-4
The impressive performance and efficient design of the Dyna-4 transmission provides unbeatable productivity, control and convenience, with completely clutchless shifting of 16 forward and 16 reverse speeds.
AGCO POWER 4 Cylinder Engine
Renowned for reliability, ruggedness and fuel economy, a 4.4-litre AGCO Power four-cylinder engine provides the heart of this Tractor Series.
All in One
All after-treatment components are located on the right side below the cab so there is no impact on visibility or cab access. Ground clearance is maintained and fuel tank capacity and service access are not compromised.
From the origins of modern tractor design, the Massey Ferguson cab is renowned for excellence, and the MF 5700 S moves that legacy a step forward. It’s something we work hard for, so you can sit and reap the benefits when days are long, in a very productive environment that blends comfort and quietness, with ease of use and quality.
Front Axle Suspension
Employing experience gained on our high hp tractors, our engineers have developed a new suspension system, which ensures best-in-class operator comfort and traction. This keeps the tractor stable, while the hydraulic suspension maintains operator comfort.
Multi-Function Joystick
Advanced control is provided by a multi-function joystick, which operates all the transmission functions as well as the spool valves or a loader. Operators can focus on the task and getting the most from the implement.
Essential Panoramic Cab
Clear, unobstructed visibility to the right-hand side allows safe and efficient operation of side-mounted equipment. The wide, one-piece screen is extremely tough and protects the operator from any flying debris.
Essential Cab
This may be the base specification but it’s anything but basic. It provides all the key qualities you would expect from a Massey Ferguson tractor – simplicity, logic and versatility – but without excessive sophistication.
Efficient Cab
Dedicated to delivering increased productivity thanks to key features, the Efficient package will enable the operator to work faster, to a higher standard and with more accuracy.
A host of dedicated design features make the MF 5700 S Series the best-in-class loader tractors – bar none. Equipped with the exclusively designed MF FL series loader range, the MF 5700 S Series offers the ultimate in loader application sophistication.
Clutch Effect
Placing the transmission into neutral can be linked to the brake pedal. This means that with only one foot, the operator can brake and de-clutch at the same time, giving total control of the machine.
Creeper Speeds Option
Close control in specialist low-speed tasks is assured with additional creeper gears, enabling forward speeds as low as 100m/hr to be achieved.
Visio Roof
Operators really value the Visio Roof option, which provides perfect visibility when stacking bales or loading trailers. The roof is fully FOPS (Falling Object Protection) compliant.
Compact and manoeuvrable, MF 5700 S tractors handle easily and comfortably in the field, on the road and in the farm yard and buildings, at full range of speeds.
Four Auxiliary Spool Valves
A choice of up to four spool valves and control options help you get the most out of modern implements, while easing operation.
PTO Engagement
PTO engagement remains electro-hydraulic using the same 3-position safety switch (On, Off, and Lock/Brake). Standard external fender mounted switches are available for PTO engagement and disengagement.
ELC Mouse
The ELC ‘mouse’ is placed specifically to the right of the operator to provide quick and easy access, allowing precise control of implement depth and lifting and lowering of the linkage.
Four-Wheel Drive
Hydralock provides true four-wheel drive with fast and full simultaneous activation of the front and rear differential locks.
Rear Hitches
The rear hitch with a choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar has been completely redesigned to make coupling quicker, easier and safer.
Rear Linkage Capacity
The rear linkage has been optimised specifically to complement this size of tractor. It boasts an impressive lift capacity of 5,200 kg, in order that heavy-mounted equipment can be lifted with ease.
Integrated Front Linkage System
A heavy duty Integrated Front Linkage System (IFLS) is available as an option and is designed to match the front suspension.
SpeedSteer
This new, optional feature enables the operator to adjust the steering ratio and select the optimum number of turns of the steering wheel required for a given amount of steering angle turns.
Electronic Linkage Control - ELC
The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements plus working height for other implements.
The on and off-board technology solutions incorporated into the MF 5700 S Series are a clear indication of the pace of progress and innovation set by Massey Ferguson. Information is power when it comes to getting the job done more efficiently and more productively. This is the reason why Massey Ferguson delivers straightforward and dependable technology solutions resulting in unbeatable ease of use, improved productivity and profitability through higher yields and lower input costs and greater profits.
Datatronic 4
Optional 7" Datatronic 4 Monitor displays important tractor information, records and shows memory functions and tasks, and oversees automation of headland management, Trailer steering axle management and Dual Control.
Fieldstar 5
The new Fieldstar 5 terminal is designed in order to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward an easy to use experience, improving efficiency, productivity and profitability.
MF Task Doc
The MF Task Doc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.
MF Guide
MF Guide is MF’s full featured, hands free steering system, available on new tractors or as an after-market installation. It is capable of delivering sub-metre, decimetre and centimetre accuracy, increasing the efficiency of your farming.
AgControl
With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or pesticides without overlapping. This prevents double treatment and areas worked outside of the field edges.
AgCommand
Connected technologies offered by the new AgCommand® telemetry solution enable your MF Dealer to help you manage your equipment to maximize uptime and productivity, while reducing operating costs.
Available Models
Model
Max Power (hp)*
Engine
Transmission
Max Torque (Nm)**
Lift Capacity (kg)
MF 5710 S
100
AGCO Power 4.4L, 4 cylinders
Dyna-4, Dyna-6
420
5,200
MF 5711 S
110
AGCO Power 4.4L, 4 cylinders
Dyna-4, Dyna-6
468
5,200
MF 5712 S
120
AGCO Power 4.4L, 4 cylinders
Dyna-4, Dyna-6
502
5,200
MF 5713 S
130
AGCO Power 4.4L, 4 cylinders
Dyna-4, Dyna-6
545
5,200
* @ 2,000 rpm | ** @ 1600 rpm | Choice of Essential, Efficient or Panoramic Cab Types for all Models
