A new era of comfort and productivity

Introducing the NEW MF TH Series Telehandler

Download Brochure

The MF TH Telehandler, built to work hard with you

Purpose built for hard work, MF TH telehandlers deliver the lift heights, capacities and reach you need for fast, accurate and efficient handling.

Powerful, precise hydraulics and a high specification make light work of every task – from shifting bales in the field or yard, lifting, stacking and loading to working in confined spaces and traditional buildings.

For access to really tight areas there’s the semi-compact MF TH.6030 model. Like the standard machines, these have four steering modes to enhance manoeuvrability and all offer superb all-round visibility.

Massey Ferguson has completely transformed the MF TH telehandlers, which offer a giant leap forward in efficiency, productivity along with new levels of visibility, ease of use and comfort. This isn’t just an upgrade. It is a breakthrough.

Key Benefits

Image Gallery

Efficiency & Comfort

Designed to provide operators with the next level of comfort and control, the spacious new cab at 73dBA, is now much quieter. Place yourself in the new air-suspended seat and you will find that everything falls to hand easily, with the new Power Control lever on the left-hand side, colour terminal screen and joystick on the right. There’s even an integrated cool box. Superb visibility is assured thanks to the new curved cab design, with new mirror positions as well as a lower profile engine bonnet offering an unobstructed view of the rear three quarter right-hand side.

Quiet and roomy workplace

The standard cab offers a 90cm of pillar to pillar width and, at 1.54m, an excellent ceiling height, while retaining an overall height of 2.49m. The compact models access lower buildings, measuring 2.10m on 20’’ tyres.

New Joystick control

Requiring 20% less effort than its predecessor, the new multi-function joystick offers precise operation of the hydraulics and transmission. It can also be mounted on the armrest of optional high specification, heated seat.

Enhanced Joystick Operation

A simple three-position rocker on the rear face of the joystick is used to select forward, reverse and neutral. A new bucket shake option, controlled by a button, helps to quickly fill and empty the bucket.

New ergonomic control

The switches have been moved to the operator’s right-hand side, where they are easy to reach. Identification is simple with backlighting and a new colour code: black for lights and mirrors, orange for transmission, blue for hydraulics.

Clear, colour 5’’ display

All MF TH telehandlers come with a new 5" colour terminal that clearly displays operating information. An intuitive menu makes it easy to navigate between settings and see the view from the optional rear camera.

Optional Boom Suspension

A boom suspension option, which activates automatically in response to speed, provides outstanding comfort and protects the boom during transport.

LED roadwork and working lights

Optional LED work and road lighting increase visibility and comfort, enabling operators to continue working more safely and easily.

Handling tasks are achieved effortlessly and efficiently with the new MF TH Series, which offers generous lift heights, a long reach and the capacity to lift heavy loads. Suitable for use with a range of attachments, the telehandlers deliver high performance in a wide variety of applications around the farm.

Two models to handle every job with ease

A choice of two models, one semi-compact MF TH.6030 and the latest MF TH.7038, which provides a maximum lift capacity of 3,800kg and height of 7m.

COMPACT MODEL

Measuring just 2.1m wide x 2.1m high the semi-compact MF TH.6030 model provides easy access to the most confined areas. Its 100hp engine and 100 l/min hydraulics lift loads of up to 3,000kg to 5.9m.

STANDARD MODEL

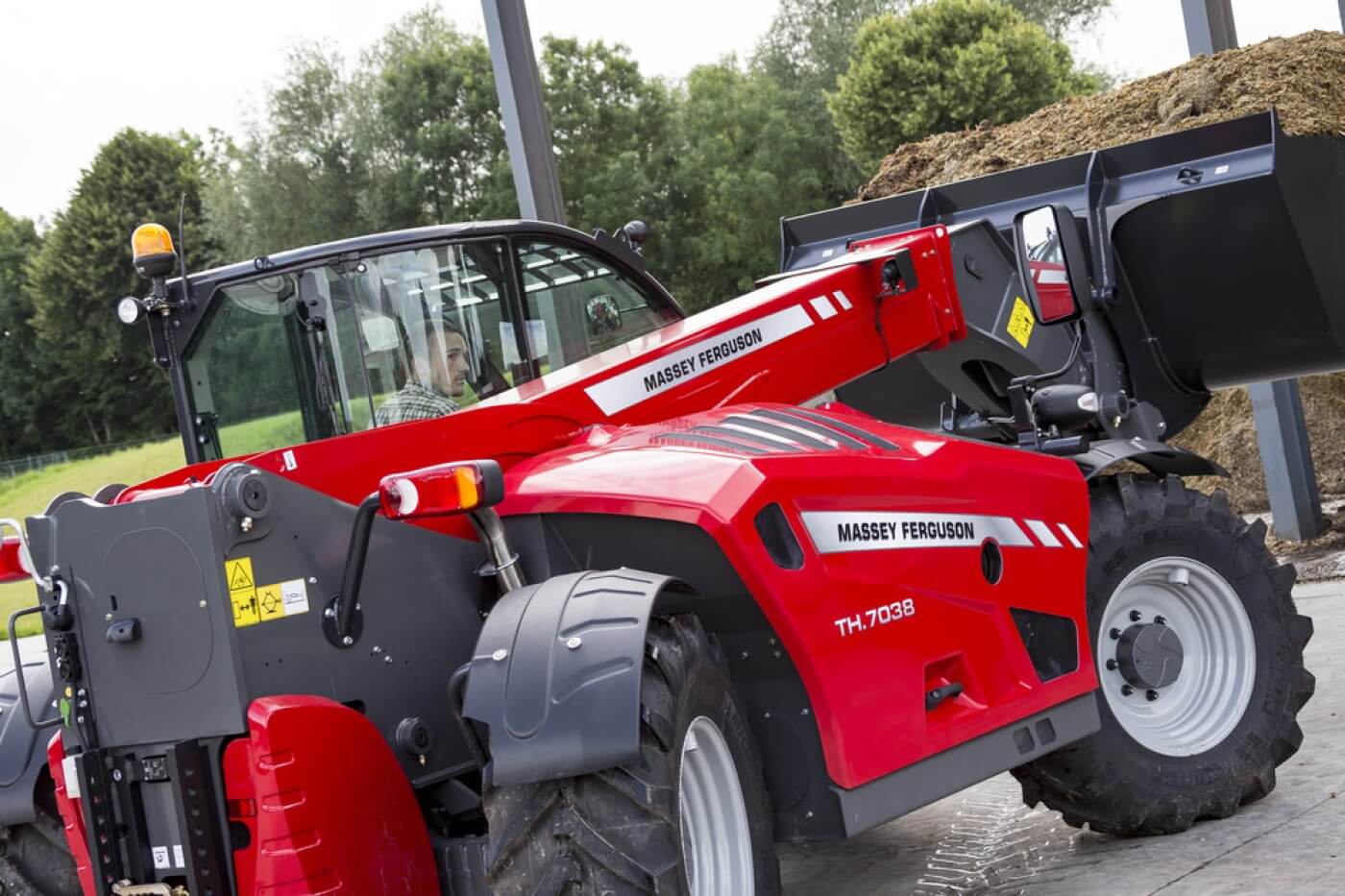

With 135hp engine and 190 l/min oil flow the TH.7038 model is equipped for demanding handling and transport applications as well as reduce loading cycle times. The quiet, comfortable cab eases operation with well positioned controls and perfect visibility

Economical, cost effective power

Well proven engine design delivers more torque at low engine speeds, which improves fuel economy.

Power and efficiency

All models are powered by a quiet running, 4-cylinder, 3.4l engine. An advanced, yet straightforward system with its components installed neatly under the slim, side bonnet, without any effect on the visibility.

New, low profile engine bonnet

A new engine installation and basket design lowers the engine height which, along with the low profile bonnet, improves visibility to the right-hand side.

Easy access to maintenance

Great visibility from the new reinforced side bonnet, which lifts completely clear for excellent access for routine servicing to reduce downtime.

Reversible fan option

A reversible fan keeps the air inlets clean for maximum cooling efficiency. This can be set to operate automatically, depending on air temperature or it can be adjusted to work at pre-set time intervals.

Smooth and precise hydrostatic transmission

Standard models are fitted with a two-range hydrostatic transmission. Offering a top road speed up to 40km/h*, it combines two mechanical gears with two hydraulic speed ranges enabling operators to select the best speed for the application.

Control in the palm of your hand

The Multifunction joystick lever controls both the transmission and hydraulics, along with operating the boom, boom float and new bucket shaking function. It is light and easy to use, responding smoothly to small hand movements.

POWER CONTROL LEVER

Massey Ferguson’s unique and exclusive Power Control lever, as used on the MF tractor ranges, provides straightforward three-in-one operation, leaving your right hand free to look after the loading.

HAND THROTTLE – AUTO MODE

New hand throttle enables operators to vary hydrostatic transmission forward speed independently of engine speed, allowing you to optimise operations with powered equipment.

Reduced cost of ownership

Hydrostatic transmission allows high engine rpm and low machine speed without braking. When going to neutral the machine is stopped by the transmission, while engine rpm remains constant, so reducing cost of ownership and lowering operator fatigue.

NEW “DYNAMIC DRIVE” DRIVING MODE

Operators can adjust the shuttle operation and throttle response to choose how quickly or slowly the transmission responds to match the application or conditions.

Smart Handling System

SHS enables operators to set and adjust maximum hydraulic flow, regardless of engine speed, which provides precise boom movements as well as high engine power.

MF TH owners and operators benefit from Massey Ferguson’s deep farming knowledge. We understand your farm handling needs so we have built a true agricultural machine, backed by our experienced, exclusive dealer network to provide you with the support to carry out the most demanding handling tasks.

Proportional flow boosts productivity

The powerful, hydraulic system provides a consistent flow and proportional, electro-hydraulic control to deliver the optimum accuracy and productivity for all handling tasks.

POWERFUL HYDRAULICS ON STANDARD MODEL

MF TH.7038 telehandler benefits from an excellent hydraulic flowrate of 190 l/min. Delivered by a load-sensing pump, the system delivers the performance to meet the most demanding tasks.

SMART HYDRAULICS ON COMPACT MODEL

Optimum hydraulic flow for the MF TH.6030 model is delivered by a of 100L/min, which provides plenty of flow for all operations.

Intelligent controls

Intelligent automatic and adjustable controls ease operation with the load-sensing system allowing you to simultaneously operate three boom functions, while steering to speed-up cycle times.

High spec boom control

With 4, electro-hydraulic, proportional spool valves, you can simultaneously operate 3 functions with high precision. A boom suspension option, which activates automatically in response to speed, provides outstanding comfort for transport applications.

Bucket Shake Option

A new bucket shake option helps to fill and empty buckets and forks, quickly and easily. Activated by a button the joystick, the shaking corresponds with joystick movement – providing control of the amount of action and the time.

Easy attachment coupling

Attachments are coupled up quickly and easily thanks to the connector block and its pressure release system. A fourth and fifth service and electric socket can be specified to operate more complex implements, such as straw choppers and feeders.

Maximum height limiter

A maximum lift height limit can be set using a switch on the control panel. This useful function improves safety and protects buildings by simply automatically stopping the lift at the pre-set limit.

Return-to-dig

Return-to-dig sets the minimum working height of the boom when it is being lowered and retracts the boom before stopping at the pre-set position. This eases operation, increases productivity and protects the building’s floor or ground from damage.

NOT LIVE Return-to-ground

It sets the minimum working height of the boom when it is being lowered and automatically retracting the boom before stopping at the pre-set position. This eases operation, increases productivity and protects the floor or ground from damage.

High performance MF TH telehandlers are equipped to handle every handling task on the farm. They combine effortless operation and efficiency with exceptional manoeuvrability cab comfort and visibility.

Outstanding manoeuvrability

A choice of four steering modes and no rear overhang deliver superb manoeuvrability to help you access and work in confined spaces and traditional farm buildings.

Select the steering mode to suit

All MF TH telehandlers offer four, selectable steering modes to provide optimum manoeuvrability in all operating conditions. It’s easy to change between modes by simply pressing a switch in the cab.

Four steering modes

The choice includes Two-wheel steer; Four-wheel steer – for tightest turns; Crab-steer – for efficient filling, grading and working alongside walls; Semi-crab – sets the rear wheel angle - useful filling silage clamps or mucking out buildings.

Semi-compact model

Designed specifically for handling heavy loads in confined areas, the 3,000kg capacity, semi-compact, MF TH.6030 takes loads to 5.9m.

Semi-compact improves access

Measuring just 2.1m high and 2.1m wide, with the low cab position and four-wheel steering manoeuvrability, this powerful compact machine opens up previously inaccessible areas to mechanical materials handling.

Comfortable and efficient operation

Excellent manoeuvrability ensures hassle-free working days for maximum productivity. The spacious cab and comfortable operator area with fully proportional joystick allow for smooth operation.

Dampened retracting system

For a smoother operation when retracting the boom, all MF TH are fitted with a dampened retracting system.

The MF TH is designed to offer quick, easy, straightforward and cost-effective maintenance and servicing.

Protection from the working environment

A 8mm thick belly plate protects the MF TH telehandler transmission and underside from knocks and damage – even when working in the harshest conditions. On the boom new protection covers reduce wear by protecting against ingress of dirt and dust.

Less downtime - more work done

Access for routine maintenance is easy, thanks to the wide opening bonnet. Servicing is straightforward, with all the components including the filters, cooling package and AdBlue system well positioned for daily maintenance to maximise uptime.

Maximise uptime

Good design helps reduce the need for servicing. Hydraulic Lash Adjustment avoids the need to check these manually – saving 20hr of service costs over 4,000hr of machine operation.

Straightforward servicing

The air filter is removed easily for checking and cleaning. An optional automatic reversible fan, helps prevent dust, straw and other materials reducing the efficiency of the cooling package.

New wide opening bonnet

The new reinforced side bonnet lifts clear on gas struts to provide quick and clear access to service the engine, air filter, cooling system and air conditioning system.

ENGINE BENEFITS AT A GLANCE

Higher output at lower engine speeds delivers higher efficiency with less noise
ECO mode offers power with efficiency
Engine remains parallel to the boom, providing excellent access and improved right-hand side visibility
Straightforward technology for a more productive working day
Standard automatic reversible fan for easy cooling package cleaning and optimum productivity.

MF TH TRANSMISSION BENEFITS AT A GLANCE

Latest developments enable the four-range hydrostatic transmission to respond more smoothly and precisely – to millimetre accuracy
Unique four range transmission delivers low speed, high torque through two mechanical gears and two hydrostatic ranges
Seamless changes enable operators to select precisely the correct speed for the job
Creeper function allows high engine speeds to be set for operations that demand low forward speeds – such as feeding or straw spreading
New hand throttle and transmission mode allows engine speeds to be set independently of forward speed, adjusted with the foot pedal.
