Setting A New Standard
Massey Ferguson engineers have farming in their blood. They know precisely how crucial it is that a tractor meets the challenges that the vagaries of nature can put in the way of any farming activity. So whether it’s making the most of short weather windows to complete jobs in the field or battling through the elements to ensure livestock are looked after, these machines can be relied on all year round.
Massey Ferguson has taken the concept of the sub-100hp (75kW) tractor and re-engineered it from the ground up to meet the needs of present and future farming.
In this power bracket, no other range on the market today offers such an array of build specifications, options and accessories, all designed to help tailor your machine exactly the way you need it for your farming operation. Each component and every assembly has been designed to ensure rock-solid reliability and dependable operation.
Key Benefits
Powering efficiency, unlocking your competitive advantage

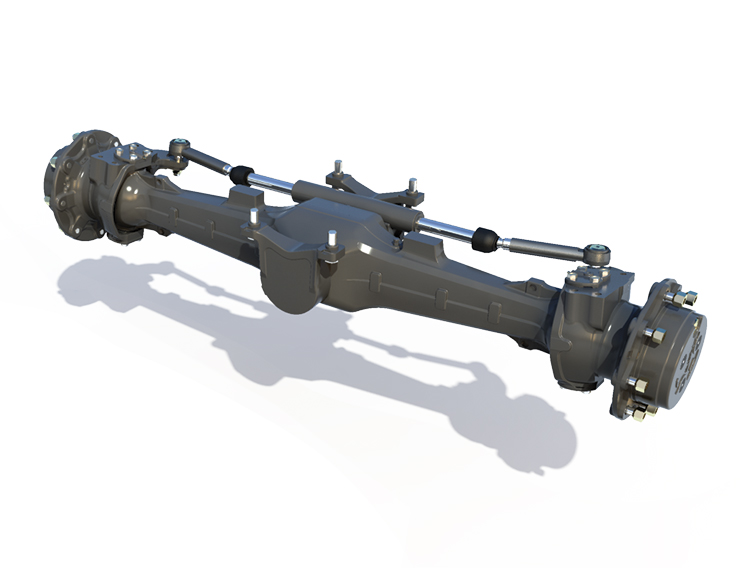

Hydralock – a true 4WD
Hydralock delivers true four-wheel drive with fast and fully simultaneous engagement of the front and rear differential locks and limited slip front differential. Centre-mounted (enclosed) driveshaft offers excellent ground clearance. 4WD models only.
Tight turning circle
A design inspired by high horsepower Massey Ferguson tractors, the front axle delivers a front axle turning angle of 55 degrees - making it easier to turn on headlands and maneuver through confined areas – getting your work done safe and faster.

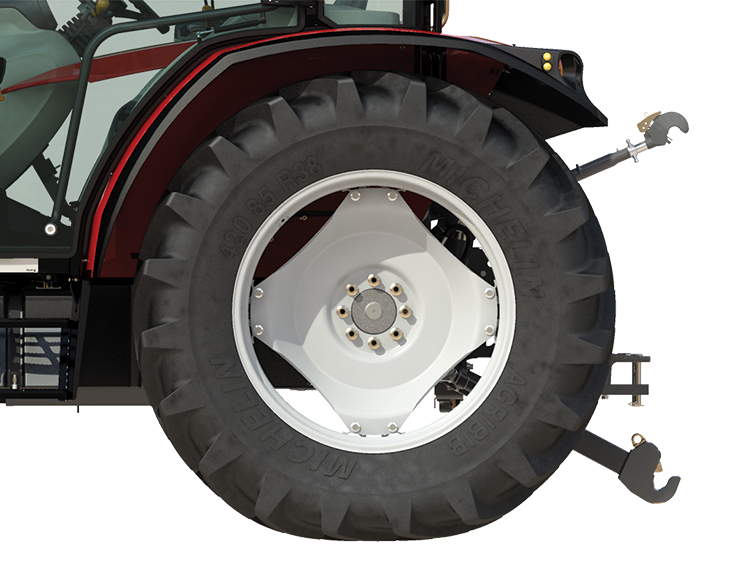

Radial Tyres
Radial tyres demonstrate outstanding traction, and self-cleaning capability. Offering exceptional high load capacity and high-speed stability, while keeping wheel slippage, soil disturbance or compaction to a minimum.

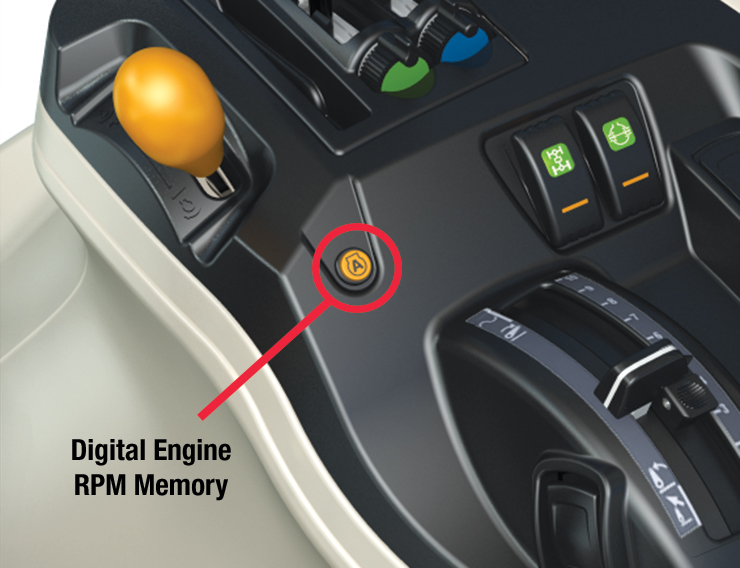

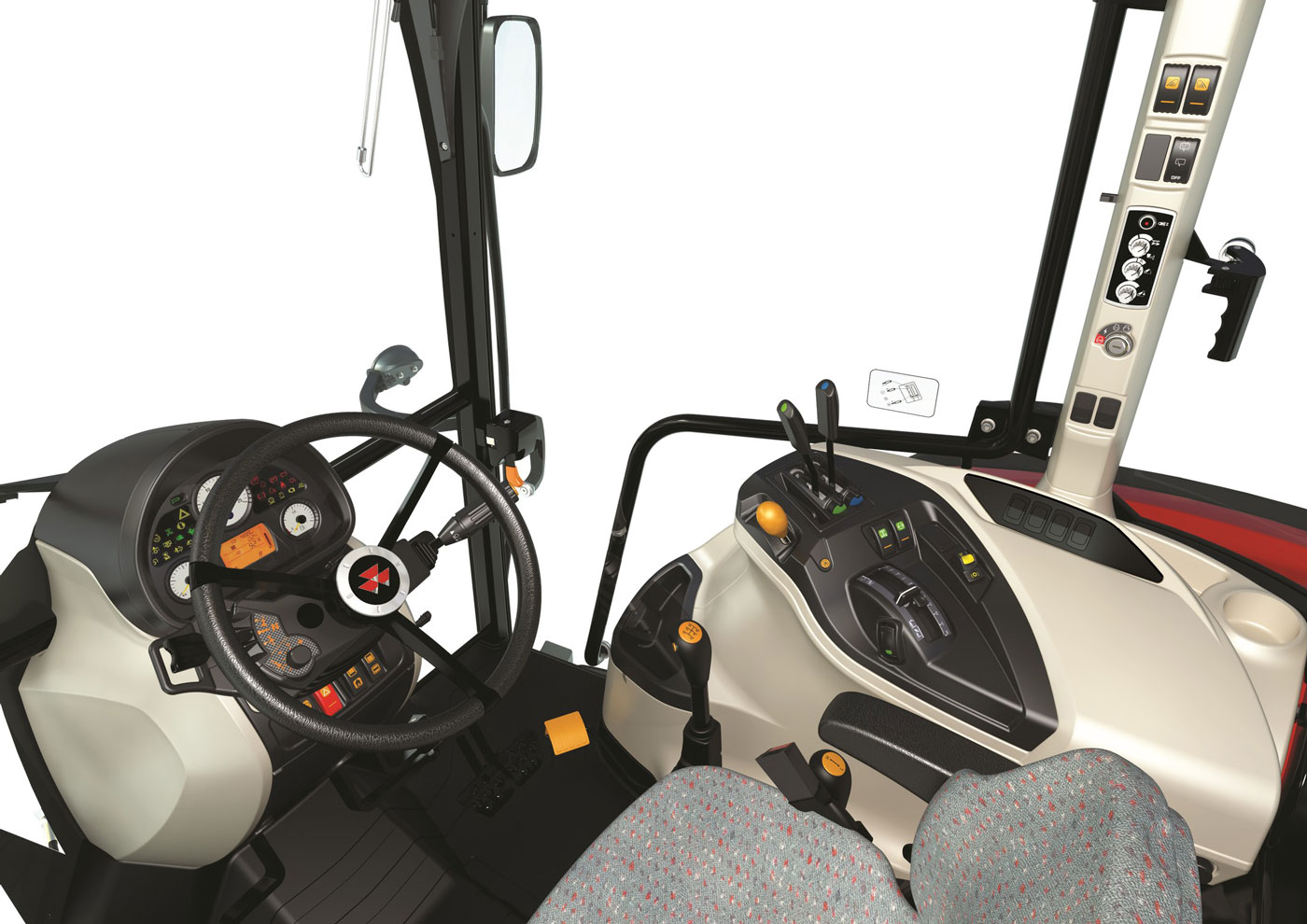

Digital Engine RPM Memory
With the press of a button, link your preferred engine speed for the application to the engine speed memory function. Constant rpm control substantially improves productivity, efficiency and quality of work.

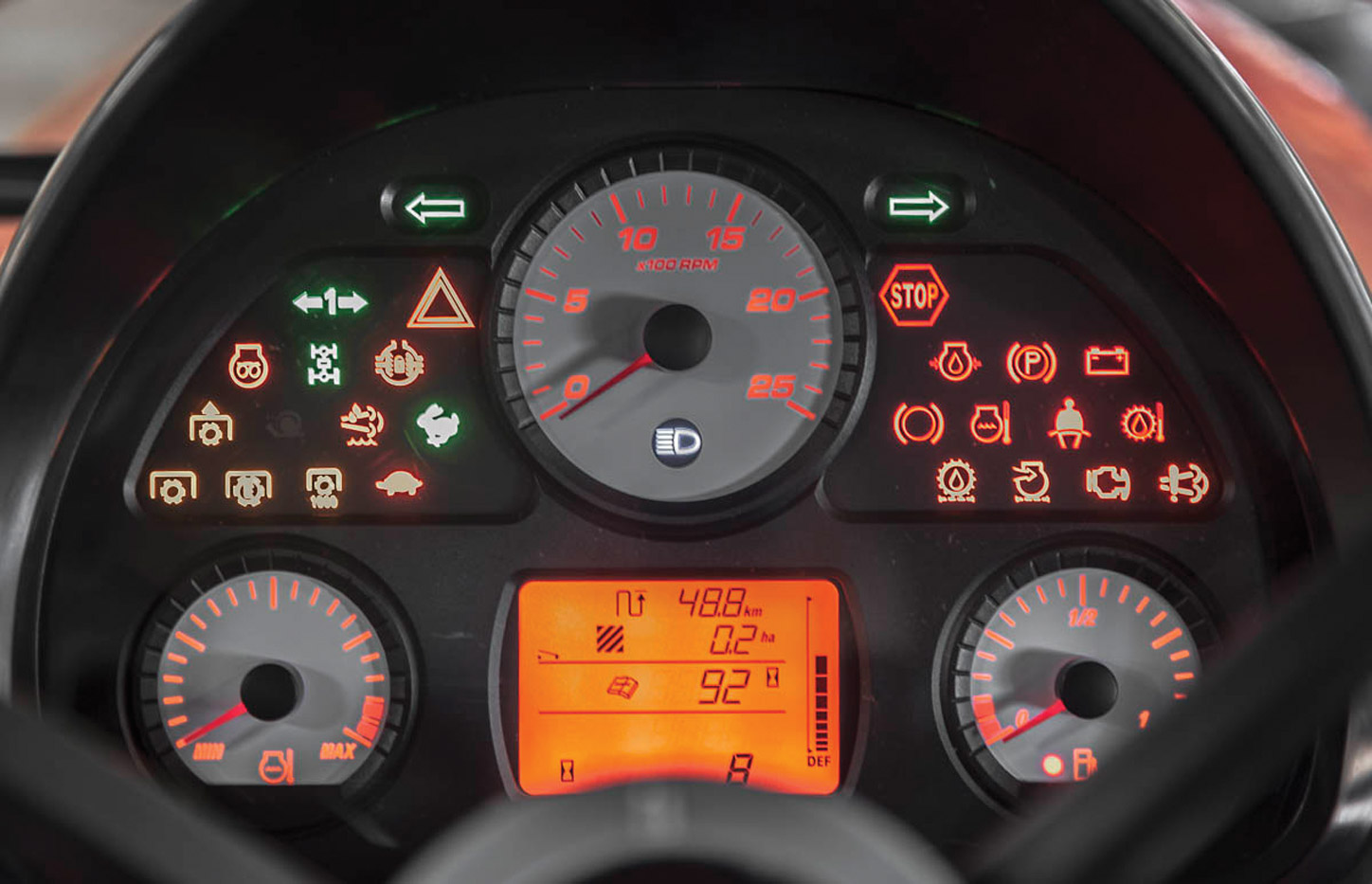

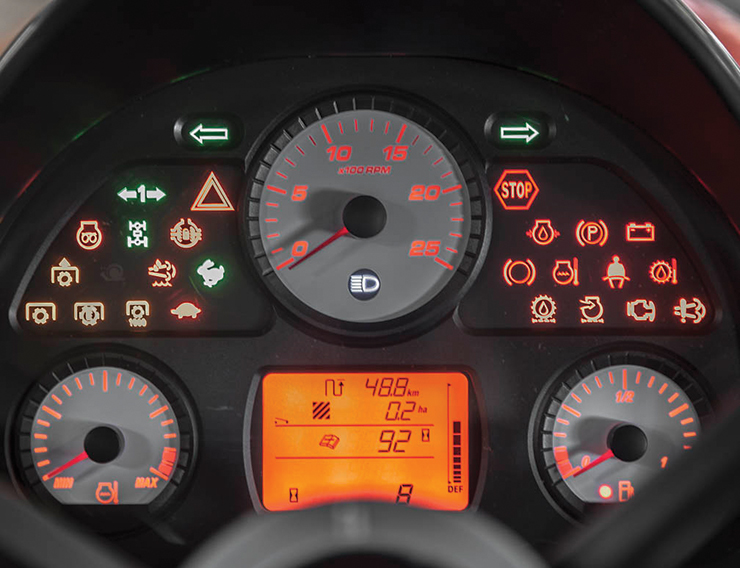

Digital Tractor Performance Monitor
Information on tractor performance and status information is provided through a digital LCD panel providing groundspeed information (kph), PTO speed (rpm), basic hectare calculator (ha), fuel consumption (lph), and maintenance indicators.
Extended Service Intervals
Plan work hours effectively for more machine uptime during peak seasons. Get more hours with less parts with an extended service interval of 500 Hours or Every 12 Months.

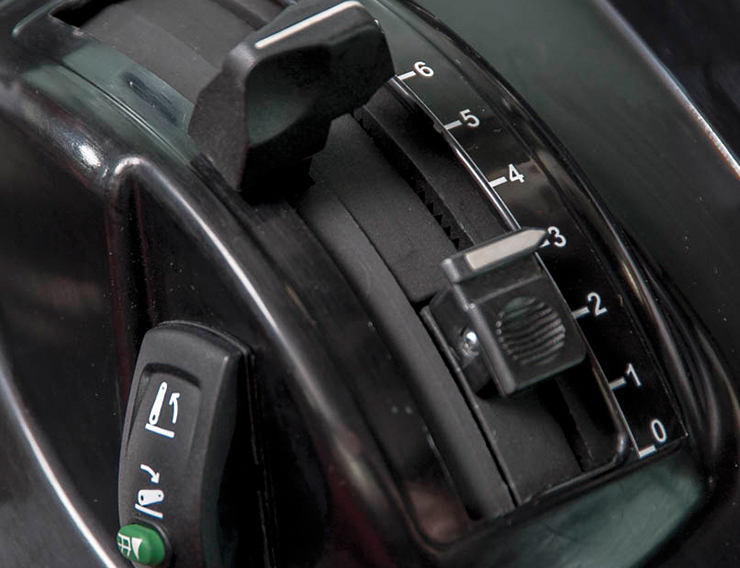

Basic & Advanced ELC
Basic ELC provides precise and accurate linkage control in both position and draft applications. Advanced ELC, available on Cab models, additionally offers quick soil engage, rate of lowering, maximum lift height, and active transport control (ATC)

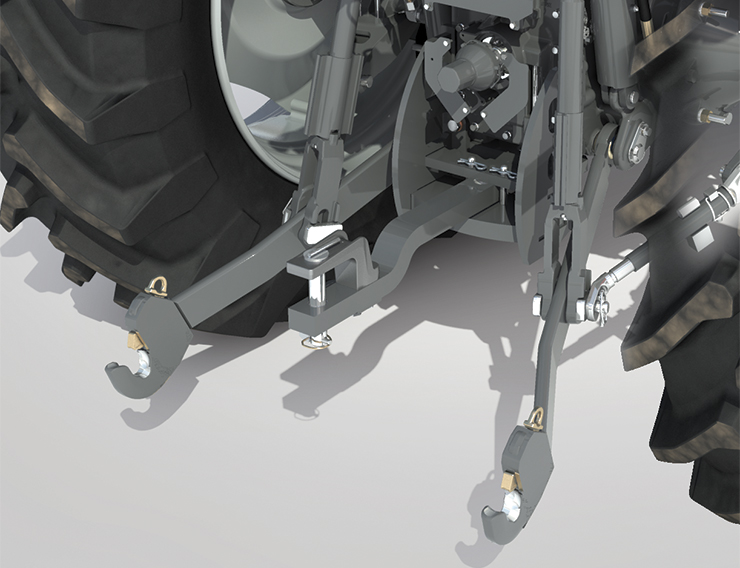

Choice of factory fitted drawbar
Heavy-Duty ISO Swinging Drawbar, Height Adjustable Hitch Manual Clevis, or Auto-Hitch & Drawbar with Hydraulic Lift & Push Back are available to suite a wide variety of farmers and their specific applications.
Hydraulic Trailer Brake
Offering added braking safety when towing loaded trailers and other implements equipped with a tractor operated braking system. This option increases the tractor’s GVM to 30,200kg allowing for more efficient haulage work.

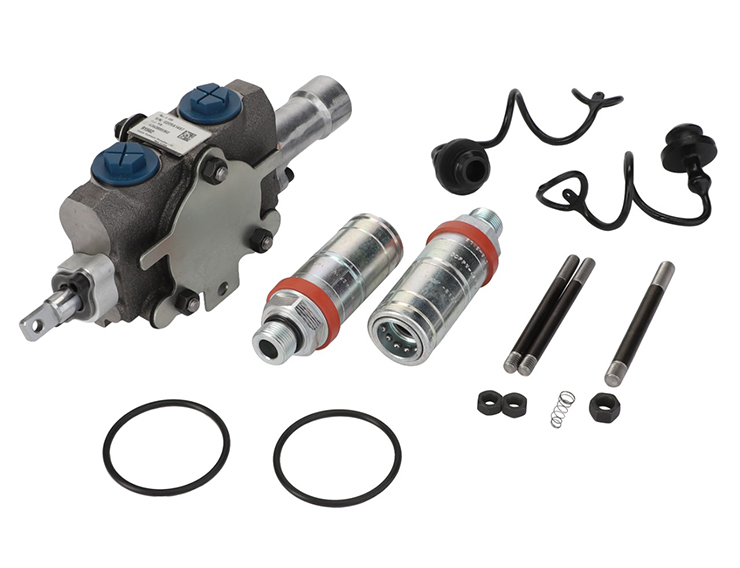

3rd Spool Valve Add-On Kit
Upgrade from 2x Spool Valves to 3x Spool Valves for more hydraulic functions and control.

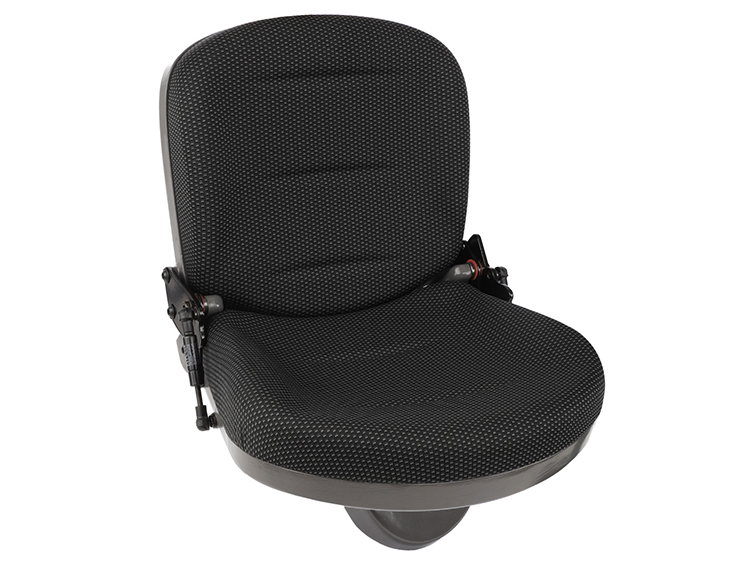

Auxiliary Passenger Seat with Seat Belt (Cab only)
Upgrade the Cab experience and add an additional buddy-seat, great for instructors and farm managers. (Cab versions only)

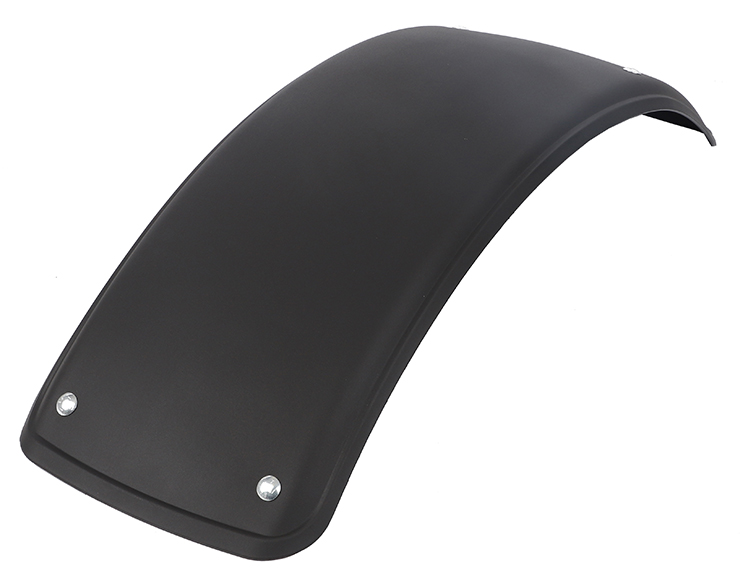

Pivoting Front Fenders (4WD Only)
Advocate for cleaner tractors and dryer operators with this stylish improvement. (4WD versions only)

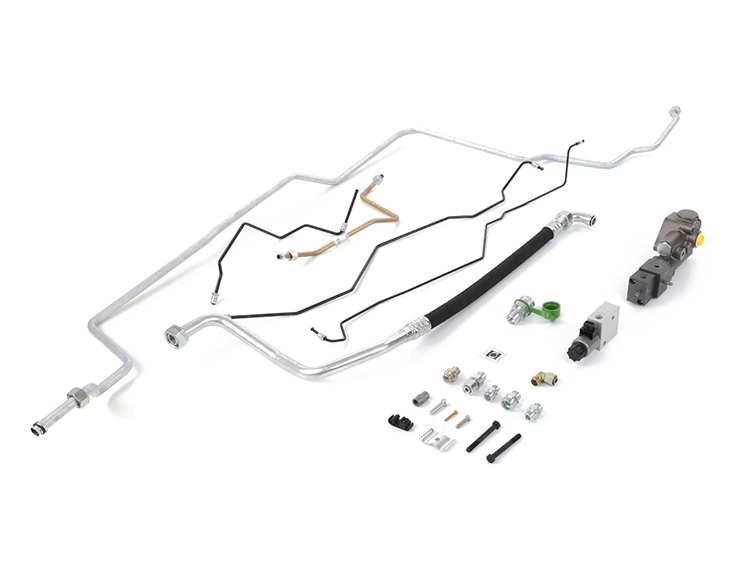

Hydraulic Trailer Brake Kit
Upgrade your tractor’s stopping power and GVM with a hydraulic trailer brake kit.

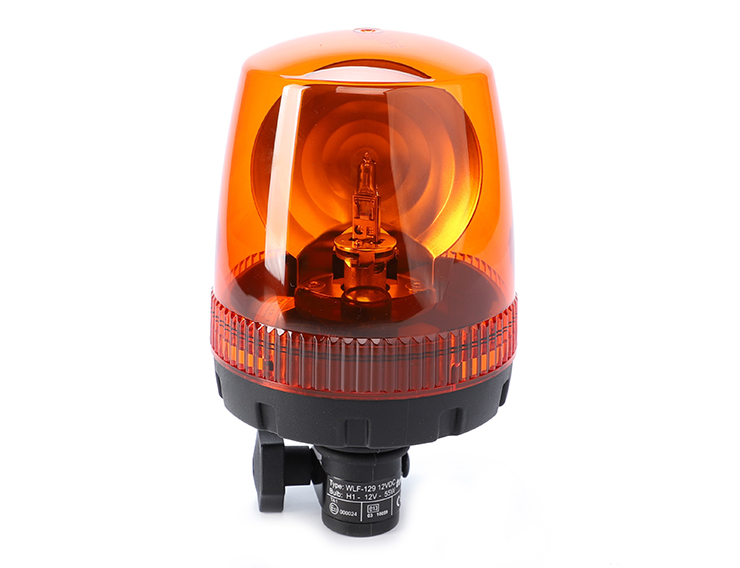

Rotating Beacon
Increase visibility and safety by adding a rotating beacon – looks more official too.

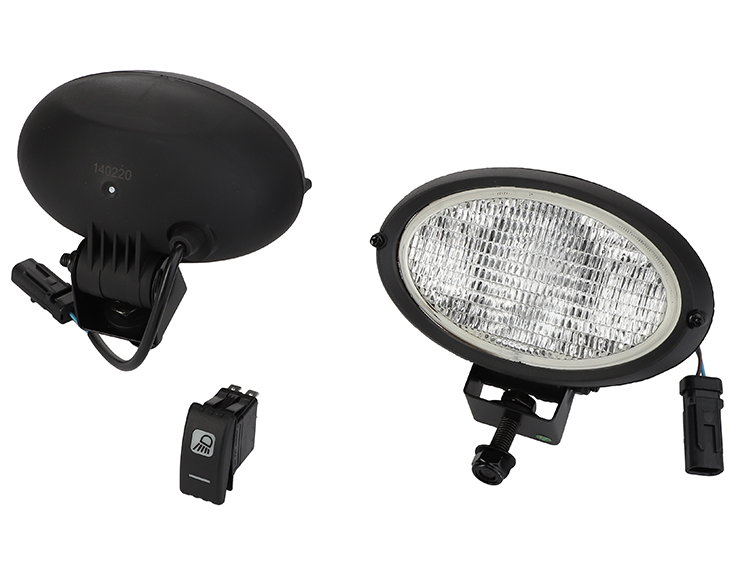

Work Lights Kit (Fits on handrails)
Start earlier and end later to get more done. Improve visibility and safety during nighttime operations.

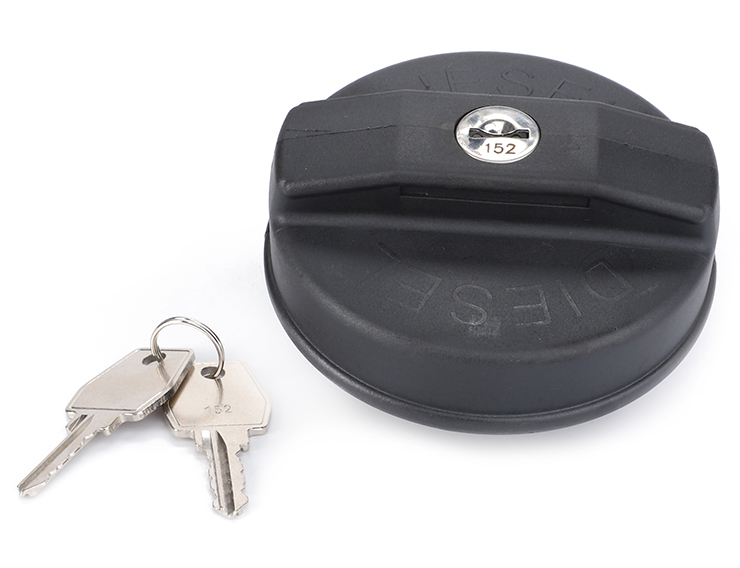

Lockable Fuel Cap
Deter criminal activity and protect the fuel stored in the fuel tank.
Spool Valve Waste Oil Recovery Reservoir Kit
Prevent oil spillage in fields and yards - do mother nature a favour.

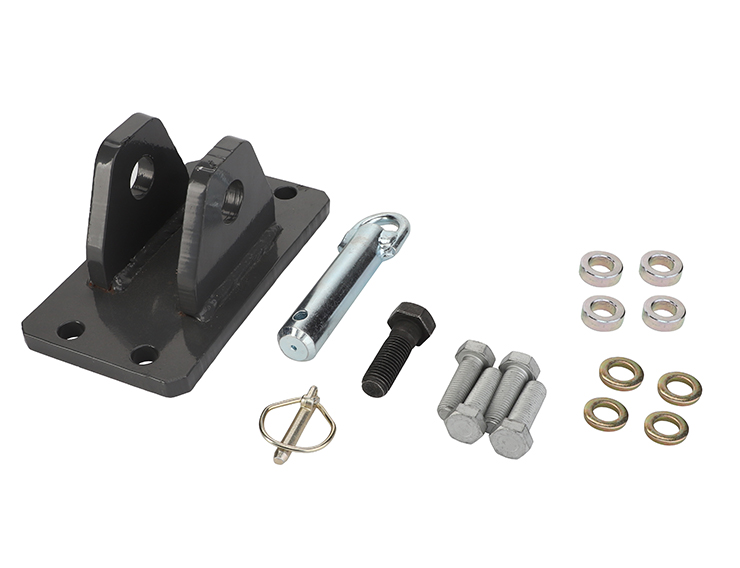

Front Tow Hitch Kit
Increase the versatility of your tractor, excellent for storage and movement of trailers and attachments. (Not for vehicle recovery)

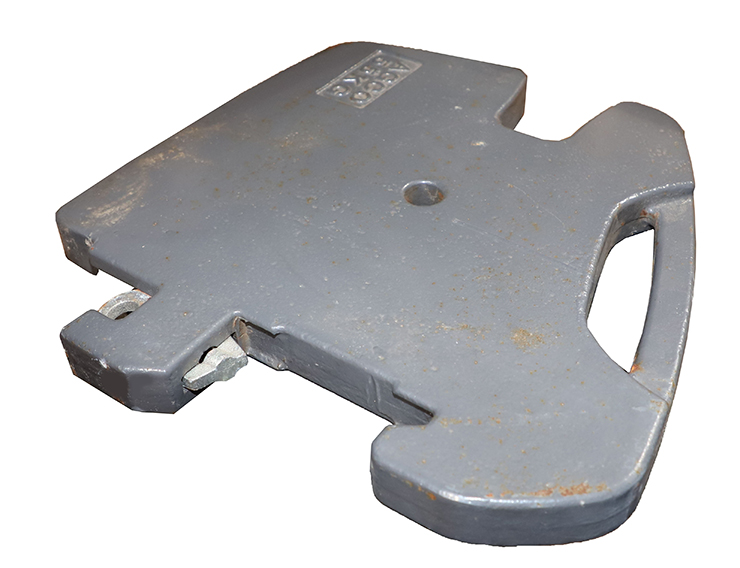

40kg Front Weight
Increase the ballast on your front axle or replace the ones the neighbour borrowed two years ago.

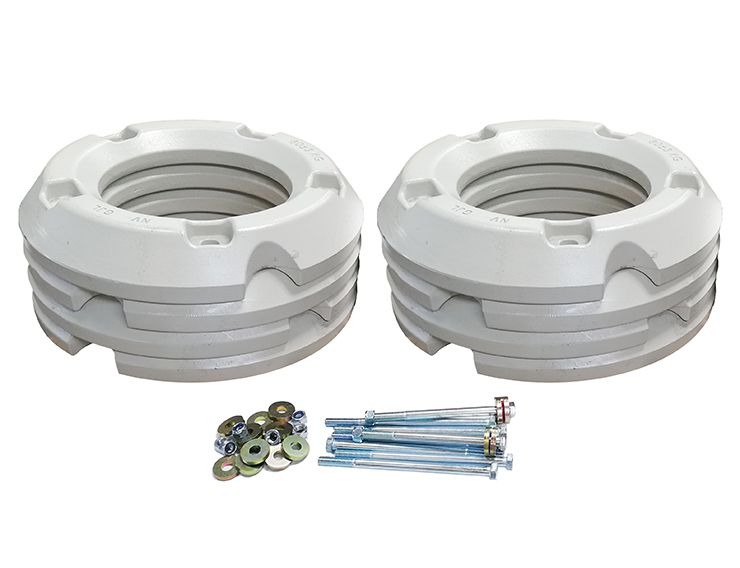

50kg Rear Wheel Weight
Increase the ballast on your rear axle for more rear wheel ballast and traction.

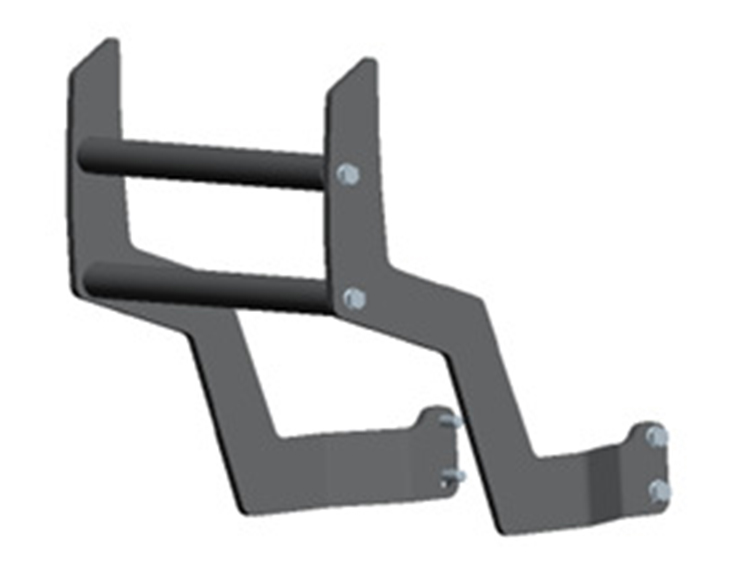

Front Grill Guard (Bull bar)
Protect the front end of your MF 4700 tractor against front end collision from front-loader work, dairy or orchard applications and makes the tractor look good too.

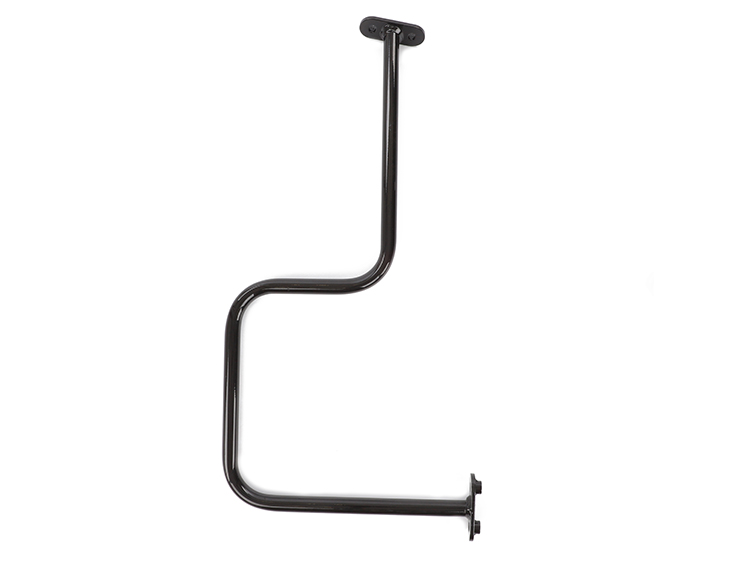

Additional Front Monitor Mounting Rail
For mounting additional monitors for attachment control consoles or precision farming technology at the front of the Cab.

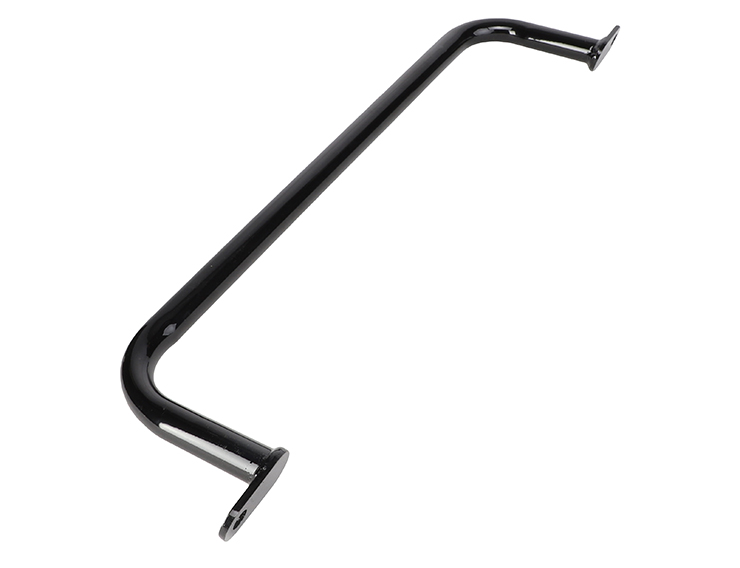

Additional Rear Monitor Mounting Rail
For mounting additional monitors for attachment control consoles or precision farming technology at the rear of the Cab..

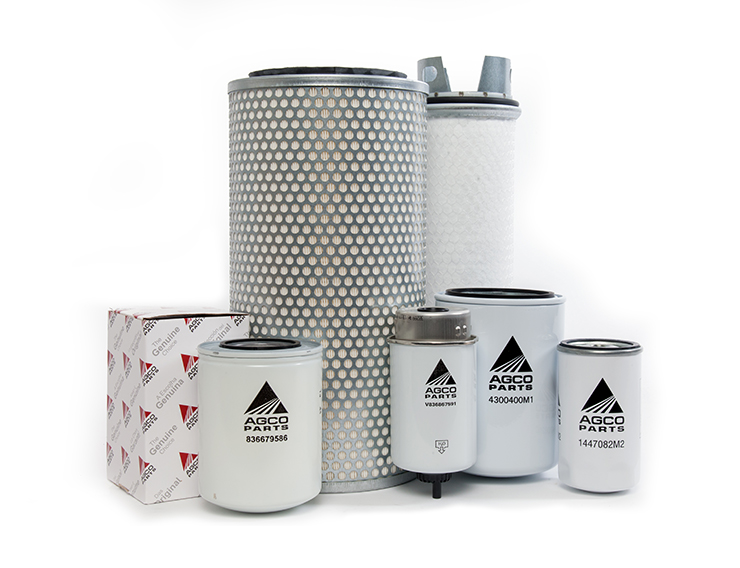

Service Kit
A package of service kit is available at your nearest dealer
Package Specifications
Designed to help tailor your machine exactly the way you need it for your farming operation
BASE |
CLASSIC |
DELUXE |
|
---|---|---|---|
Transmission |
Dash Mounted Mechanical 12x12 Synchro Shuttle | Power Shuttle 12x12 with Comfort Control | Super Creep 24x24 Transmission with Comfort Control |
Power Take-Off (PTO) |
540 @ 1,920 engine rpm - |
540 @ 1,920 engine rpm 540E @ 1,560 engine rpm |
540 @ 1,920 engine rpm 540E @ 1,560 engine rpm |
Hydraulic Spool Valves |
2x Spool Valves - DA FL* | 2x Spool Valves - DA KO FL* | 2/3x Spool Valves - DA KO FL/FD* |
Brakes |
- | - | Hydraulic Trailer Brakes |
Rear Ballast |
- | 2x Single 50kg Rear Wheel Weights | 4x Single 50kg Rear Wheel Weights |
Fenders |
- - |
Pivoting Front Fenders (4WD Only) Rear Fender Side Extensions |
Pivoting Front Fenders (4WD Only) Rear Fender Side Extensions |
Operator Seat |
Mechanical Spring Seat | Mechanical Spring Seat with Armrest | Mechanical Spring Seat with Armrest |
Available Models
Models |
Max Power hp (kW)* |
Engine |
Max Torque (Nm)** |
Lift Capacity (kg) |
Ideal for |
---|---|---|---|---|---|

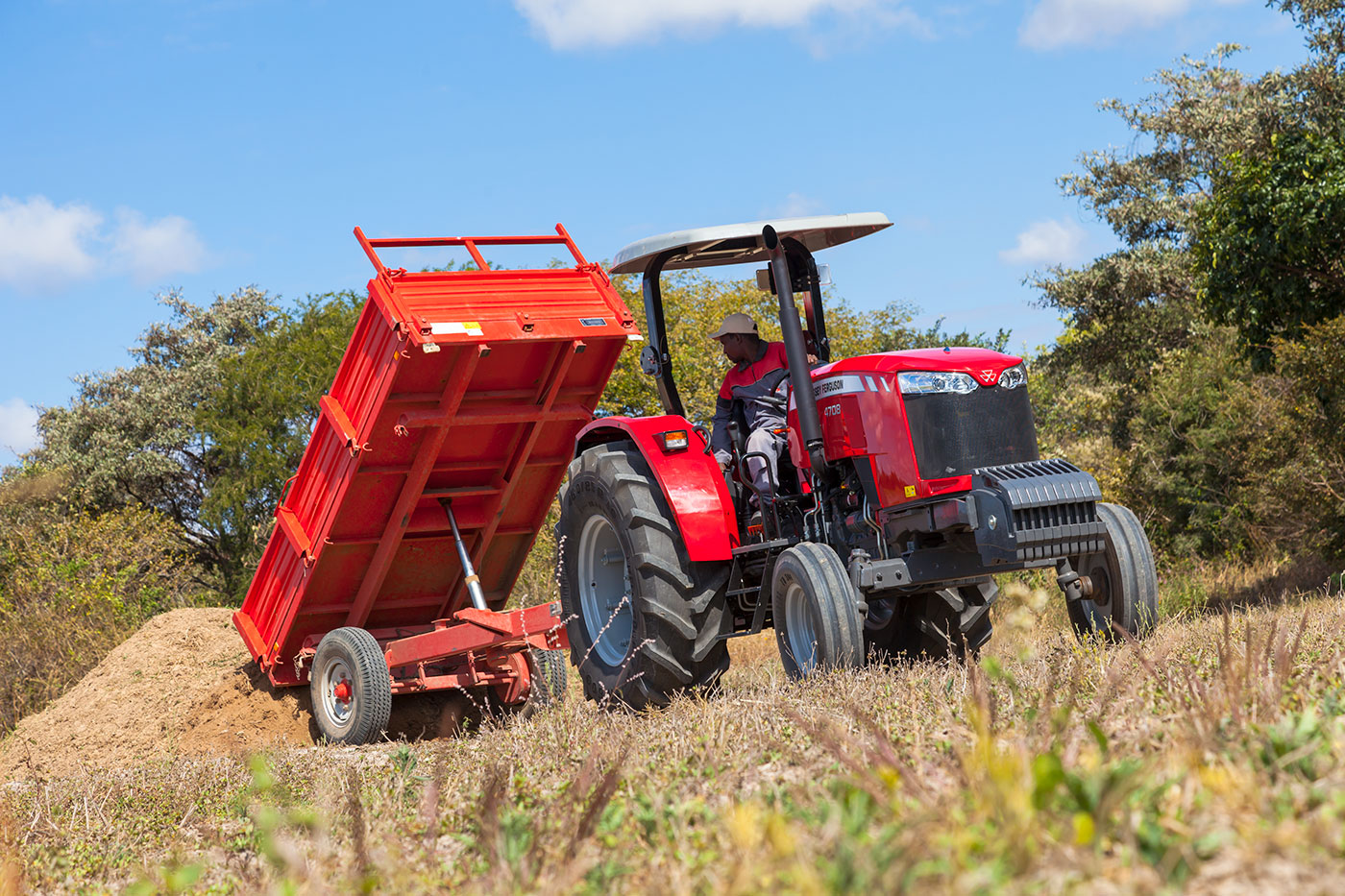

MF 4708 Essential | 85 (63) | AGCO Power 3.3L, 3 cylinder | 342 | 3,000 | Cultivating, seeding, applicating, Hay-making, Dairy & Livestock care, Loader & Transport work, All-year round “contracting" |
MF 4709 Essential | 95(71) | AGCO Power 3.3L, 3 cylinder | 355 | 3,000 | Cultivating, seeding, applicating, Hay-making, Dairy & Livestock care, Loader & Transport work, All-year round “contracting" |

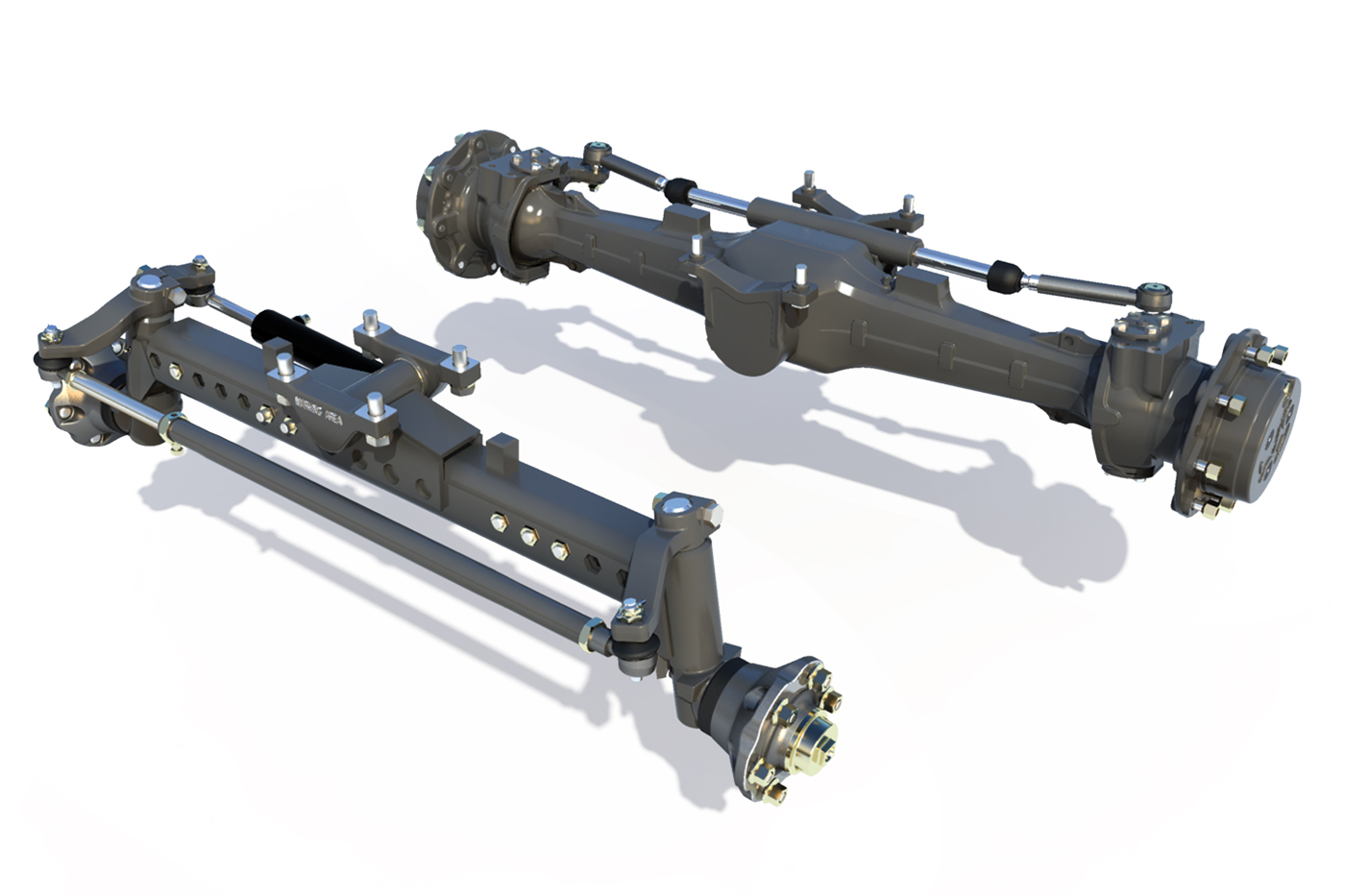

* @ 2,000 RPM | ** @ 1,500 RPM | AVAILABLE IN 2WD & 4WD FRONT AXLE | AVAILABLE IN SEMI-PLATFORM & CAB | STANDARD 12 FORWARD AND 12 REVERSE SYNCHRONIZED SHUTTLE TRANSMISSION |
