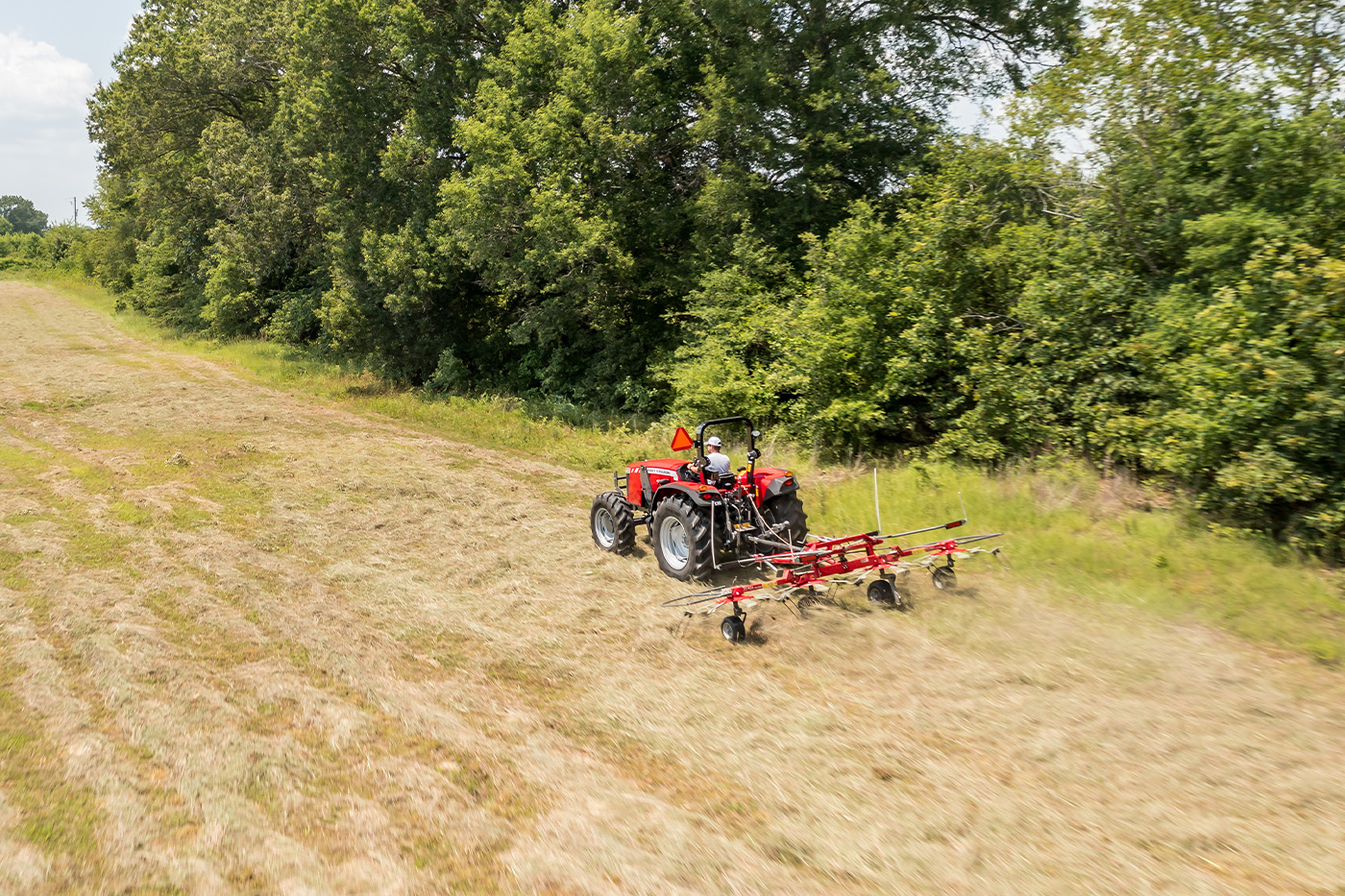

MF TD and TDX Series Tedders

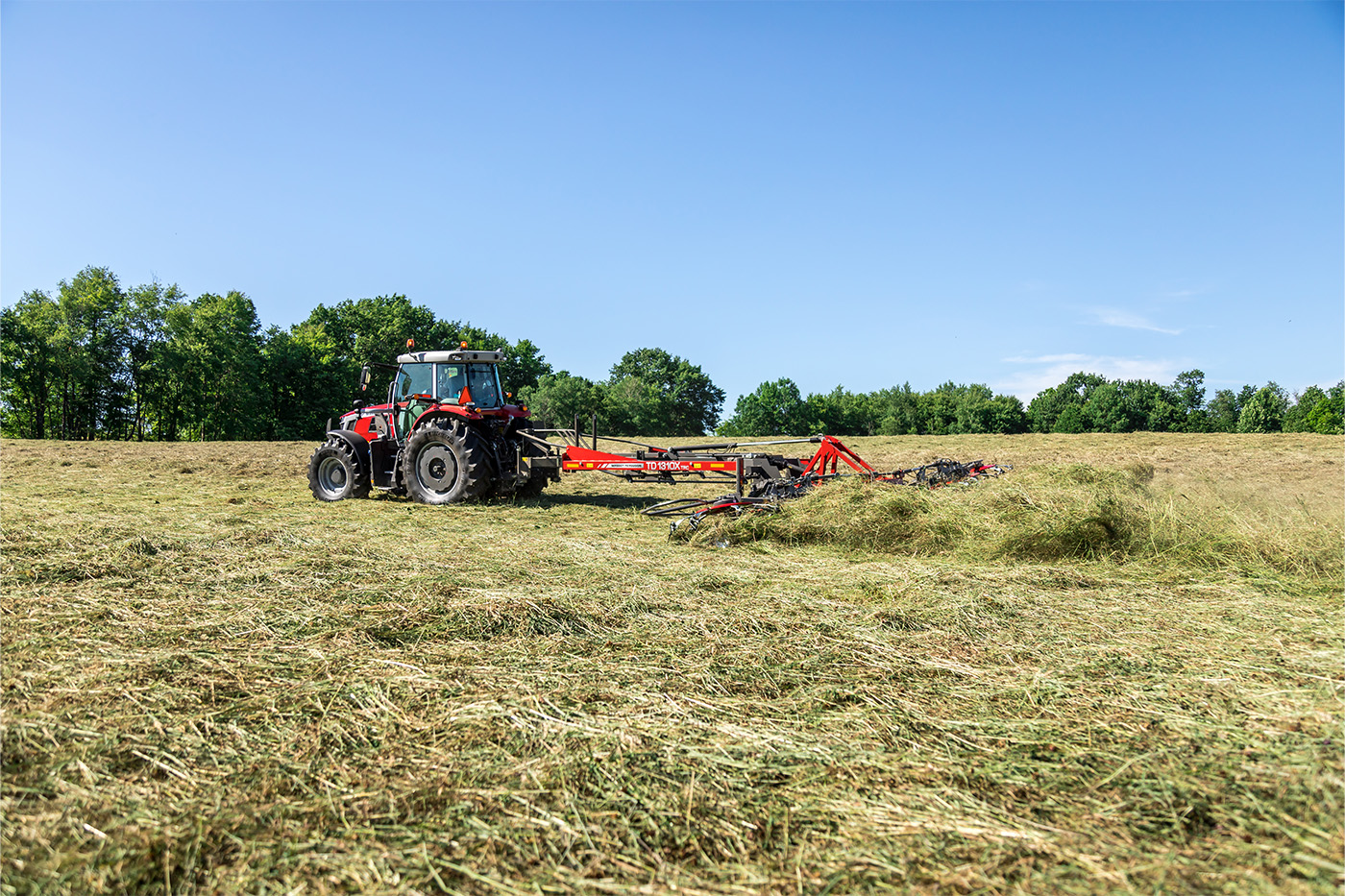

Massey Ferguson professional-grade tedders are designed for the most rugged conditions, maximizing your ROI and minimizing the hay drying cycle. MF TD Series tedders features a range of configurations and working widths to fit many applications, with proven performance and low maintenance design. The new MF TDX Series tedders boast one-pass tedding in the heaviest crop conditions. Hook tines and a robust frame ensure the MF TDX series will perform day after day, with even distribution in a single pass.
Current Offers & Promotions
![MF TD Series Tedders](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/mf-tedders/gallery/76285_MF_Website-Nav-Page_Images_a1_1400x933_MFTD524-Series-Tedder.jpg)
MF TD Series Tedders
0% for 48 months
Offer valid through July 31, 2024
Key Benefits
Technology & Innovation
![STRENGTH IN NUMBERS](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/performance/MF-Tedders-Strength-in-Numbers.jpg)
STRENGTH IN NUMBERS
A 1:2 transmission ratio gives you maximum performance at minimum PTO speeds.
![AUTO-OFF](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/performance/MF-Tedders-Auto-Off.jpg)

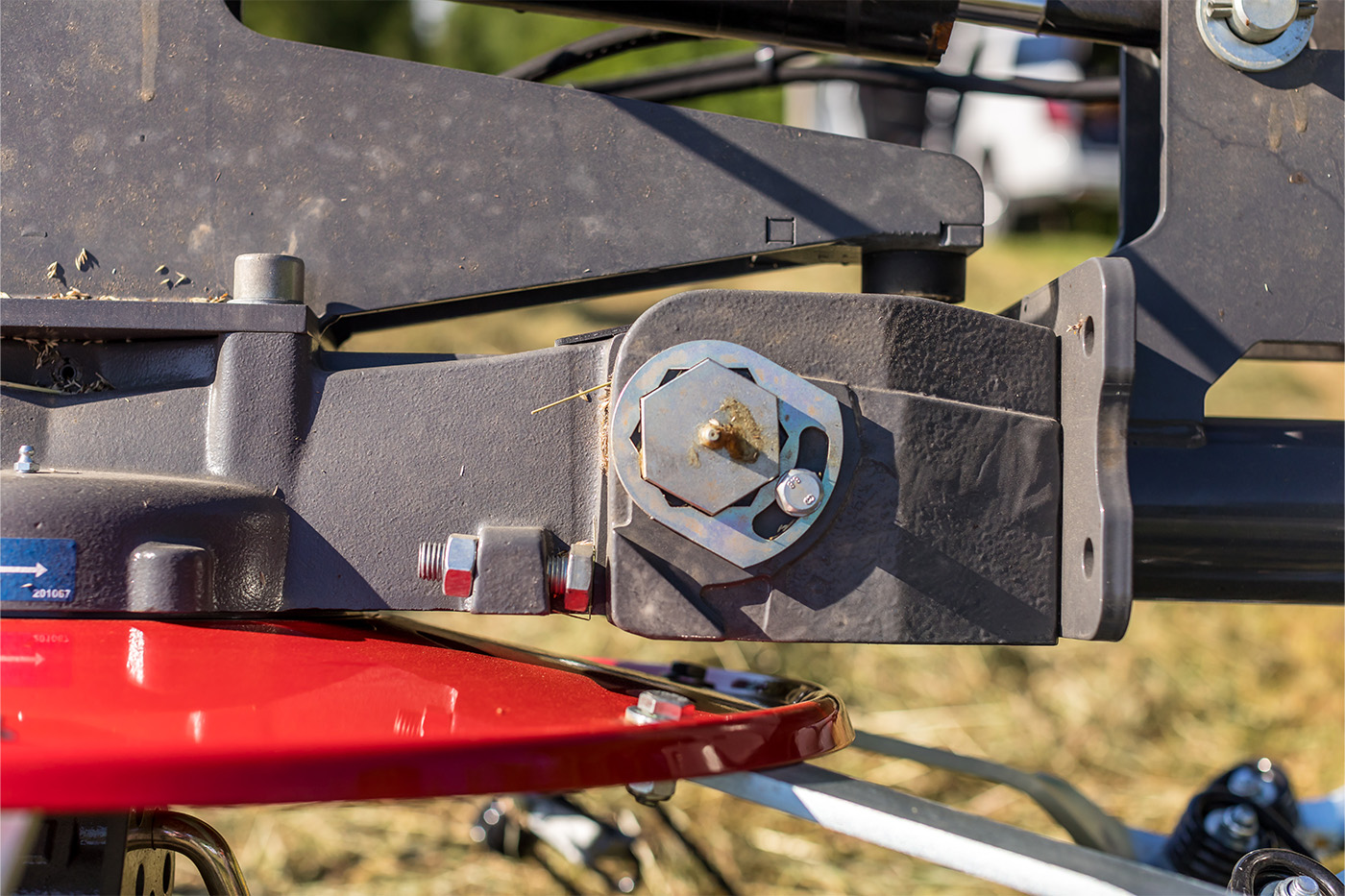

AUTO-OFF
Cutout clutches protect U-joints and provide automatic power disconnection in the event the tedder is folded into the transport position accidentally while running in the field.
![HEADLAND LIFT POSITION](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/performance/MF-Tedders-Headland-Lift-Position.jpg)

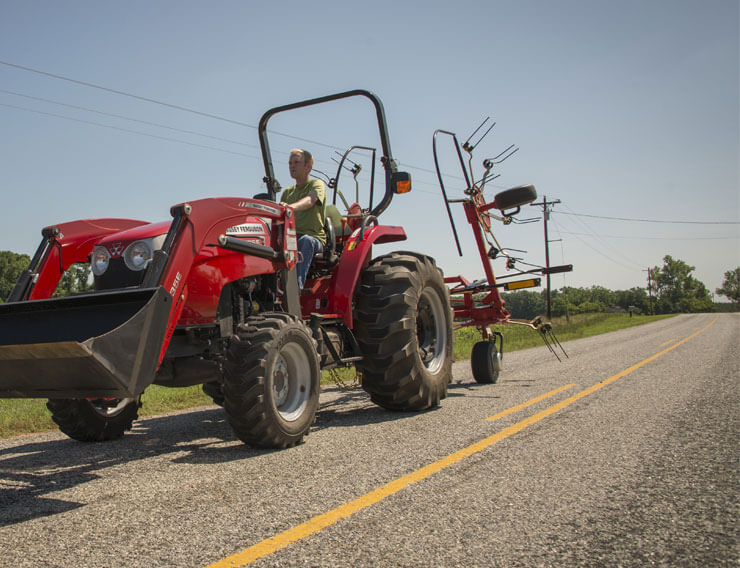

HEADLAND LIFT POSITION
All tedders are equipped with a headland lift position to allow you to quickly and easily navigate headland turns and obstacles without possibility of driveline damage.
![WELL FRAMED](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/performance/Well-Framed-MF-TD-Frame-Tubes.jpeg)
WELL FRAMED
MF TD Series tedders feature rugged, square-tube frames with modular construction. MF TDX Series tedders offer durable, round-tube frames with modular construction. Both provide dependability and longevity in a wide range of conditions.
![Rotor Head](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/performance/MF-TD-Rotor-Head.jpg)
Rotor Head
Massey Ferguson rotor heads have an enclosed design which protects all important components from dirt and dust. This design provides years of trouble-free service.
![BIG FIELDS OR SMALL](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/productivity/MF-Tedders-Big-Fields-Or-Small.jpg)

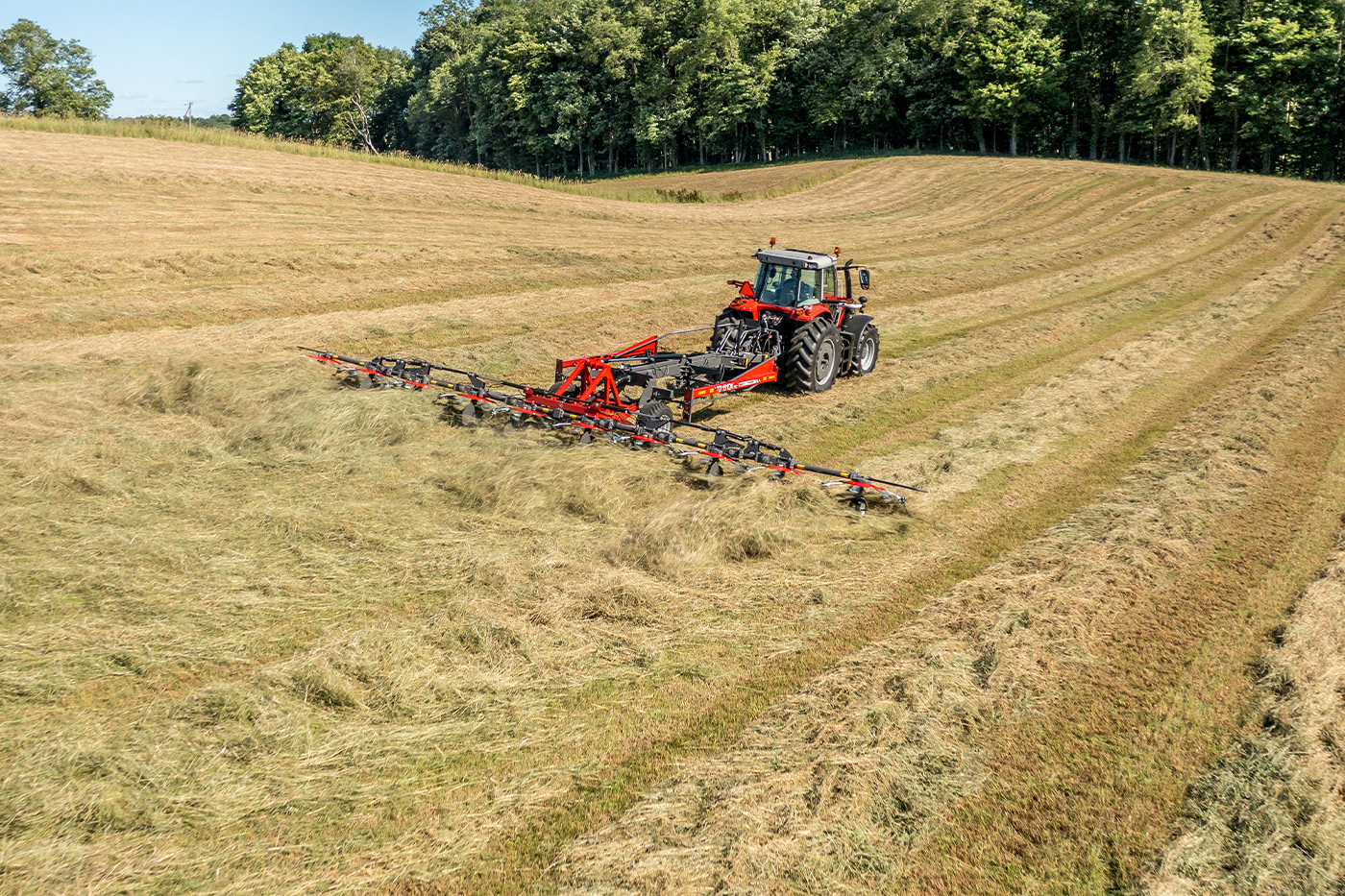

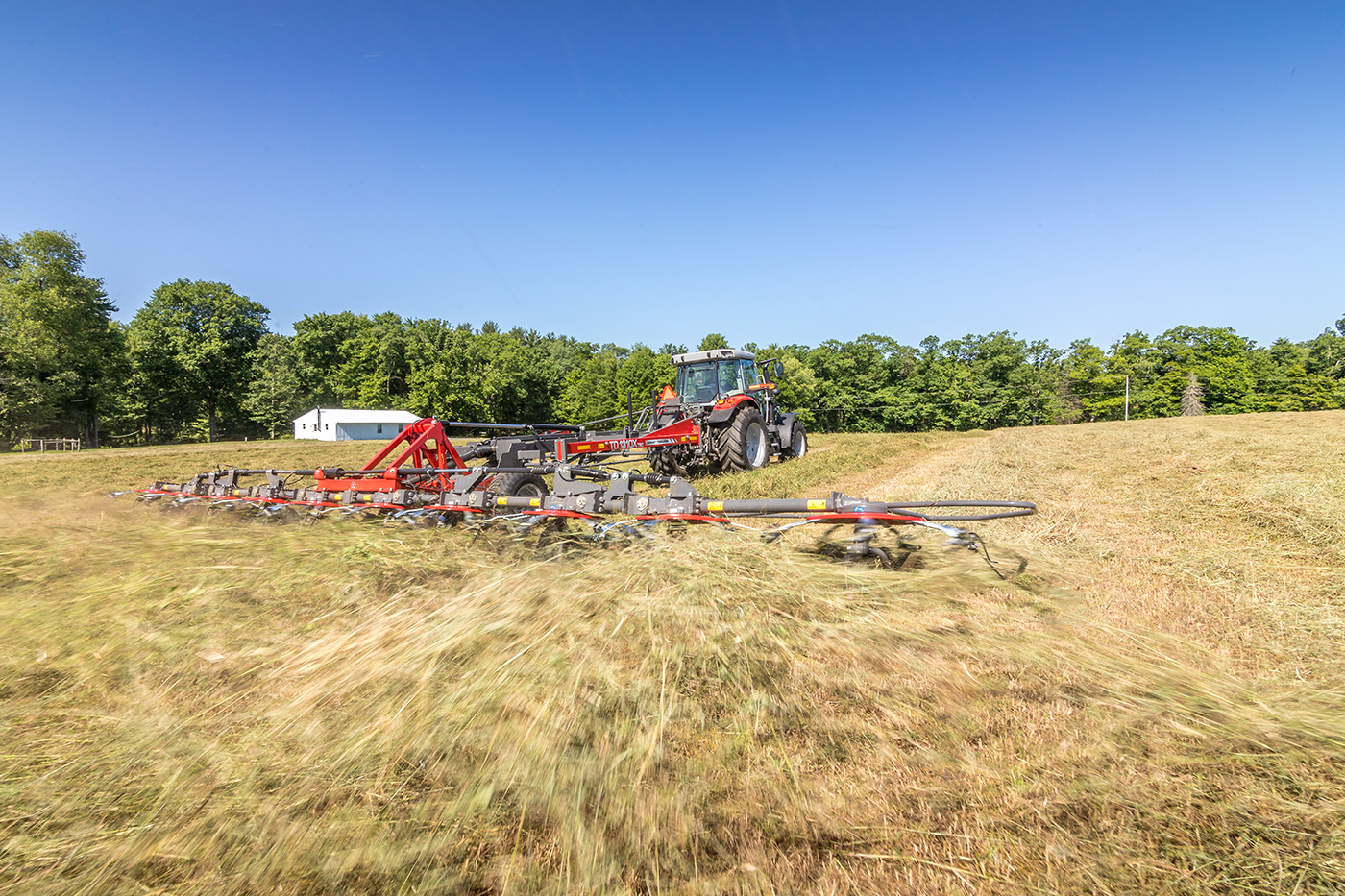

BIG FIELDS OR SMALL
Our MF TD and TDX Series models range from 8 feet 2 inches to 41 feet 8 inches, ready to meet the needs of small farms as well as high-acreage hay operations.
![GET THE RIGHT CONFIGURATION](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/productivity/MF-Tedders-Configuration.jpg)

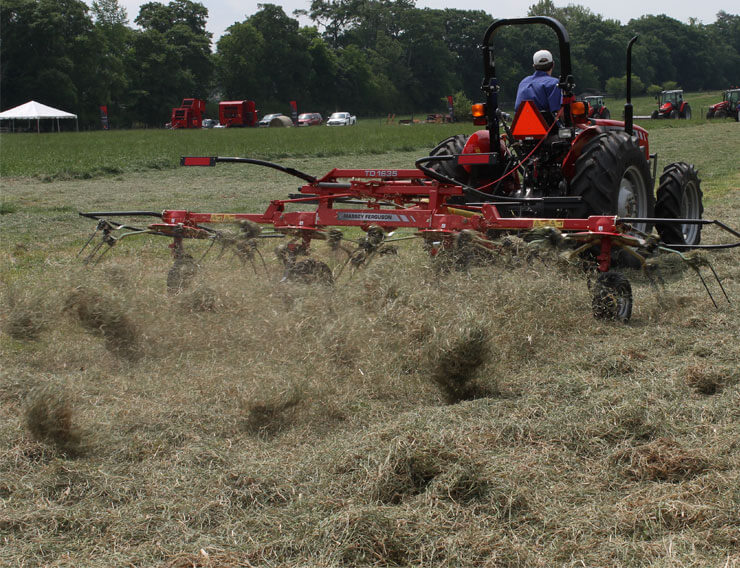

GET THE RIGHT CONFIGURATION
We offer a wide range of tedder configurations to meet the needs of various operations. Users can choose from drawbar hitch, 3-point hitch, hydraulic vertical folding, 2-point trailed, and transport cart configurations.
![FASTER RESPONSE](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/productivity/MF-Tedders-Faster-Response.jpg)
FASTER RESPONSE
Close coupling between the rotor support wheels and the tines provides quick response to contours and optimal height adjustment.
![POSITIVELY DRIVEN](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/productivity/Positively-Driven-MF-TD-Power-Train.jpeg)
POSITIVELY DRIVEN
All MF TD Series tedders utilize hexagonal driveshafts with U-joint connections to transfer power through the machine. This design provides a smooth-running, long-lasting rugged design that minimizes downtime and repair expense.
![COILED & READY](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/Tines/MF-Tedders-Coiled-Ready.jpg)

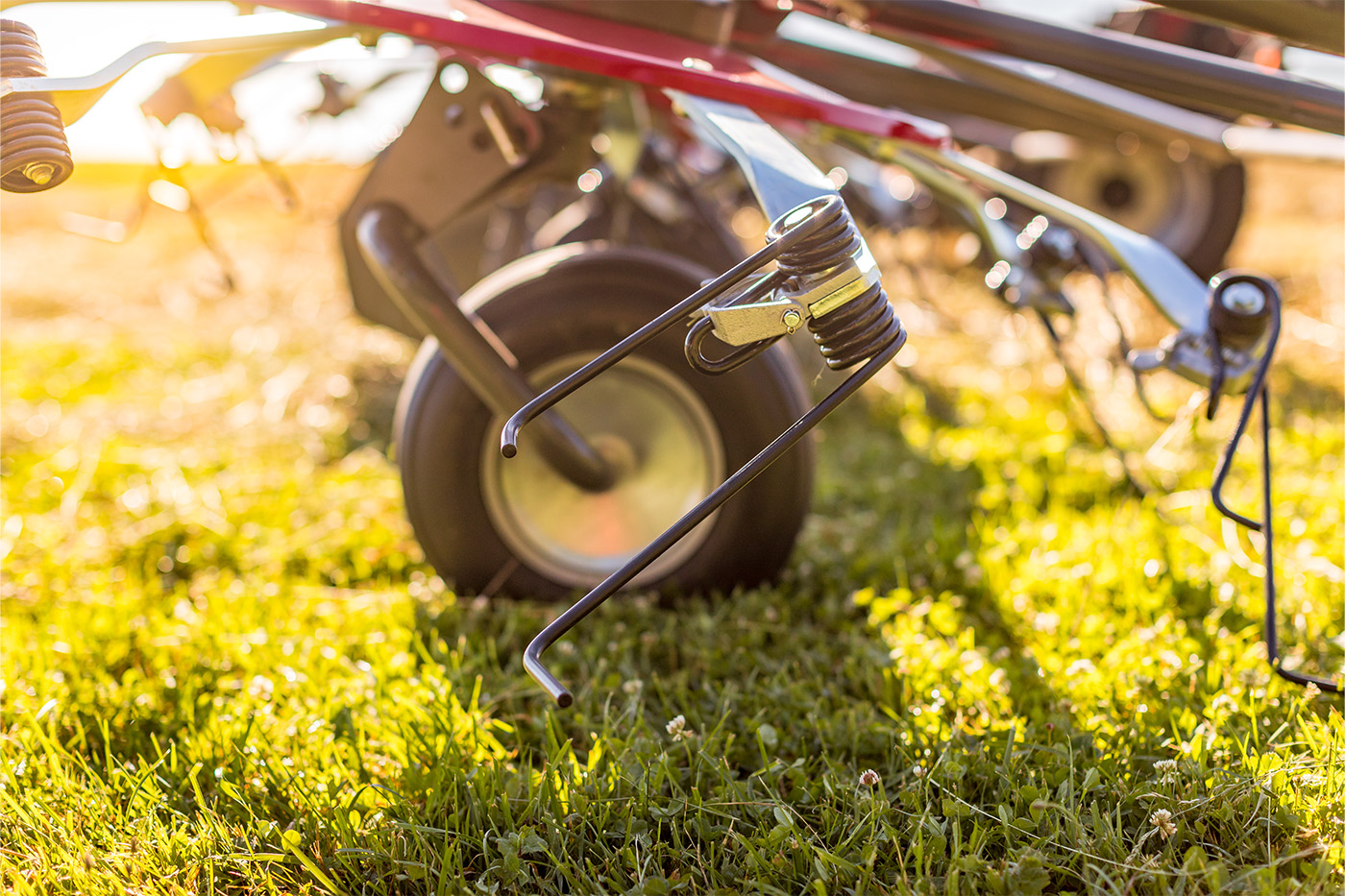

COILED & READY
Our exclusive Super C coil tines have six full windings per tine to make them tough, elastic and durable — plus they’re bottom-mounted for better deflection.
![Hook Tines](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/Tines/MF-Tedders-Hook-Tines.jpg)
Hook Tines
MF TDX models feature heavy-duty hooked tines to spread crops more evenly. Plus, with six full windings per tine, you can tackle even the heaviest forages.
![Tine Arms](/content/dam/public/masseyfergusonglobal/markets/en_us/assets/hay-and-forage/technology-and-innovation/mf-tedders/Tines/MF-Teddrers-Tine-Arms.jpg)
Tine Arms
The tine arms are made of a tough, galvanised flat steel bar, which allows a wide contact surface between tine and rotor disc. This ensures excellent power transmission even under the harshest of working conditions.
Available Models
Model |
Working Width ft. (m) |
Number of Rotors |
Min. PTO HP |
Hitch |
Transport |
---|---|---|---|---|---|
MF TD 252 TR | 8’2” (2.5) | 2 | 20 | Drawbar | N/A |
MF TD 524 TR | 17’1” (5.2) | 4 | 30 | Drawbar | Hydraulic Vertical Fold |
MF TD 776 TRC | 25’3” (7.7) | 6 | 41 | Drawbar | Transport Chassis |
MF TD 1008 TRC | 33’6” (10.2) | 8 | 48 | Drawbar | Transport Chassis |
MF TD 1310 TRC | 41’8” (12.7) | 10 | 61 | Drawbar | Transport Chassis |
MF TD 776 X DN | 25’3” (7.7) | 6 | 75 | 3-Point | Vertical Fold |
MF TD 1028 X TRC | 33’6” (10.2) | 8 | 75 | 2-Point Trailed | Transport Chassis |
MF TD 1310 X TRC | 41’8” (12.7) | 10 | 90 | 2-Point Trailed | Transport Chassis |
